IPRO is a global leader of advanced sensing technologies in the fields of Intelligent Surveillance, Public Safety, and Industrial/Medical Imaging. Established in 2019, IPRO was built on a legacy of over 60 years of innovation with Panasonic.
The company’s products, software and services extend human senses to capture moments of truth with innovations that inform and protect. In order to help create a safer world, IPRO supports the work of professionals who protect and save lives.

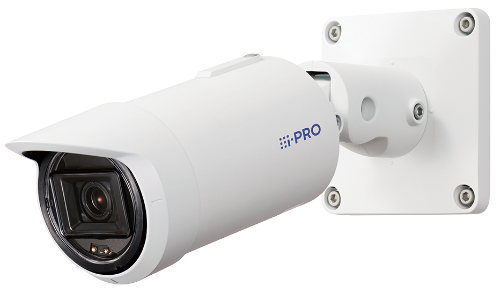

The S-Series network cameras offer a new standard in i-PRO video surveillance with drastically improved image quality with advanced technology. It comes with pre-installed AI analytics applications that detects people and vehicles with accuracy, allowing you to easily start state-of-the-art video surveillance.
The camera can be configured while keeping the unit in the box with the acclaimed “Easy Kitting Packaging”, making the installation process smooth and easy.
– Drastically improved image quality by advanced technology and AI intelligent Auto
– Pre-installed AI analytics applications to detect human and vehicles. Ready for installing 3rd party applications
– Detecting suspicious sound like Gunshot, Yell, Vehicle horn, and Glass break, with external microphones
– Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box
– i-PRO Configuration Tool “iCT” can set up 1024 cameras at the same time.
High security standard
– Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color : 0.007 lx (30IRE, F1.3, 1/30s) Color : 0.009 lx (50IRE, F1.3, 1/30s) BW : 0.005 lx (50IRE, F1.3, 1/30s) BW : 0 lx (50IRE, F1.3,1/30s with IR LED) |
| White Balance | ATW1/ ATW2/ AWC |
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.144 dB (Super Dynamic : On, Level 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) |
| Fog Compensation | On / Off (only when Intelligent auto / auto contrast adjust : Off) |
| Maximum Gain | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) 50 m {Approx. 164 ft} (50IRE) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection (SCD) | On / Off, 1 areas available |
| Audio Detection | On / Off |
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break |
| AI Analytics | Yes |
| Privacy Zone | On / Off, Up to 8 zones available |
| VIQS | On / Off, Up to 8 zones available |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° |
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto focus |
| Phạm vi lấy nét | 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) |
| Phát hiện (25ppm / 8ppf) | Wide: 23.5 m / 77.2 ft, Tele: 114.8 m / 376.5 ft |
| Quan sát (62.5ppm / 19ppf) | Wide: 9.4 m / 30.9 ft, Tele: 45.9 m / 150.6 ft |
| Nhận biết (125ppm / 38ppf) | Wide: 4.7 m / 15.4 ft, Tele: 23.0 m / 75.3 ft |
| Nhận dạng (250ppm / 76ppf) | Wide: 2.4 m / 7.7 ft, Tele: 11.5 m / 37.7 ft |
| Gắn trần | Horizontal : ±180 ° (PAN rotation part) Vertical : 0 ° to 100 ° (TILT rotation part) Yaw : –190 ° to +100 ° (YAW rotation part) |
| Treo tường | Horizontal : ±100 ° (TILT rotation part)* Vertical : ±100 ° (TILT rotation part)* Yaw : –190 ° to +100 ° (YAW rotation part) * You can change between horizontal and vertical angels by adjusting the PAN rotation part |
| Kiểm soát hình ảnh | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Cài đặt ngôn ngữ | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser*4 | Microsoft Edge, Firefox, Google Chrome |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) | [16 : 9 mode (60 fps mode)]*2 , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)]*2 , [16 : 9 mode (25 fps mode)] 1920×1080, 1280×720, 640×360, 320×180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280×960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048×1536*5 , 1280×960, VGA, QVGA |
| JPEG | 10 steps |
| Mã hóa thông minh | GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off |
| Truyền âm | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*7 : 64 kbps / 96 kbps / 128 kbps |
| Giao thức hỗ trợ | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Số người dùng đồng thời | Up to 14 users (Depends on network conditions) |
| Thẻ nhớ SDXC/SDHC/SD | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Available SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB |
| Khả năng tương thích | iPad, iPhone, Android™ terminals |
| ONVIF Profile | G / M / S / T |
| Nguồn báo động | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Báo động | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| Đầu ra hình (for Adjustment) | VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Đầu vào âm thanh*8 | ø3.5 mm stereo mini jack |
| Đầu vào micro | Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Xấp xỉ 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V |
| Đầu vào dòng | Input level : Xấp xỉ –10 dBV |
| Đầu ra âm thanh *8 | ø3.5 mm stereo mini jack (monaural output) Output impedance : Xấp xỉ 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals*8 | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Độ an toàn | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035 |
| Nguồn điện và mức tiêu thụ | DC power supply*8 : DC12 V 710 mA, Xấp xỉ 8.5 W PoE (IEEE802.3af compliant) Device : DC48 V 190 mA, Xấp xỉ 9.1 W (Class 0 device) |
| Nhiệt độ hoạt động | -40 °C to +60 °C (-40 °F to 140 °F)*9 (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) |
| Độ ẩm hoạt động | 10 to 100 % (no condensation) |
| Chống nước và bụi | IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant |
| Chống va đập cơ học | IK10 (IEC 62262) |
| Kích thước | ø133 mm (W) x 133 mm (H) x 383 mm (D) {ø5-1/4 inches (W) x 5-1/4 inches (H) x 15-3/32 inches (D)} |
| Trọng lượng | Xấp xỉ 2.4 kg {5.3 lbs.} |
| Finish | Main body : Aluminum die cast and resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Front panel : Polycarbonate resin, Clear |
