Camera Panasonic WV-U1142
- SKUWV-U1142
- BrandsIpro
- Originschina
- Price:contact
- Status:Available Stock
Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.
In addition, Panasonic also has a factory in Japan that specializes in the production of surveillance camera equipment to serve the needs of domestic market & export limited when required. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to customers.

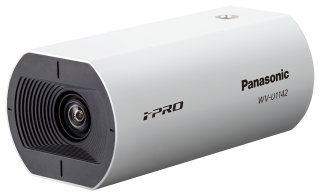

Camera Panasonic WV-U1142 is a product of Panasonic brand, distributed genuine by Phuc Binh Company, with sophisticated design combined with outstanding features, promises to bring a clear image experience, suitable for installation in locations such as shops, supermarkets, offices, factories, hospitals, families, etc.
• 4MP resolution, support up to 30fps
• Built-in 2.5x zoom motor, autofocus
• iA (Smart Auto)
• Anti-backlight up to 102dB
• Display color images (0.019 to 0.3 lx)
• H.265 intelligent compression standard
• Display according to the corridor observation mode (rotate the image displayed 90 or 270 degrees)
| Model | WV-U1142 |
| Camera | |
| Image Sensor | Approx. 1/2.7 type CMOS image sensor |
| Minimum Illumination | Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
| Maximum shutter | Max. 1/10000 s to Max. 16/30 s |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max. 102 dB (Super Dynamic: On, Level: 31) |
| Back light compensation/ High light compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off) |
| Fog compensation | On/ Off (only when Intelligent auto / auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Privacy Zone | On / Off (up to 8 zones available) |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Focal length | 2.9 mm – 7.3 mm{1/8inches-9/32inches} |
| Zoom ratio | 2.5x Optical zoom (Motorized zoom / Motorized focus) 3.3x FHD Extra Optical Zoom (when resolution is 1920×1080) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE) |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Browser GUI | |
| Camera Control | Brightness |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] *[4:3 mode] is not supported. 2560×1440, 1920×1080, 640×360, 320×180 |
| H.265 | Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort |
| Transmission Type: Unicast/ Multicast | |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off AUTO VIQS: On/ Off |
| Network | |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure Compatible microSDXC/microSDHC Memory Card: Panasonic 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, Android terminals |
| Alarm | |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device : DC48 V 100 mA, Approx. 4.8 W (Class 2 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions | 59 mm (W) x 49 mm (H) x 116 mm (D) |
| Mass (approx.) | 200 g {0.44 lbs.} |
| Finish | Main body : PC / ABS resin, i-PRO white |
