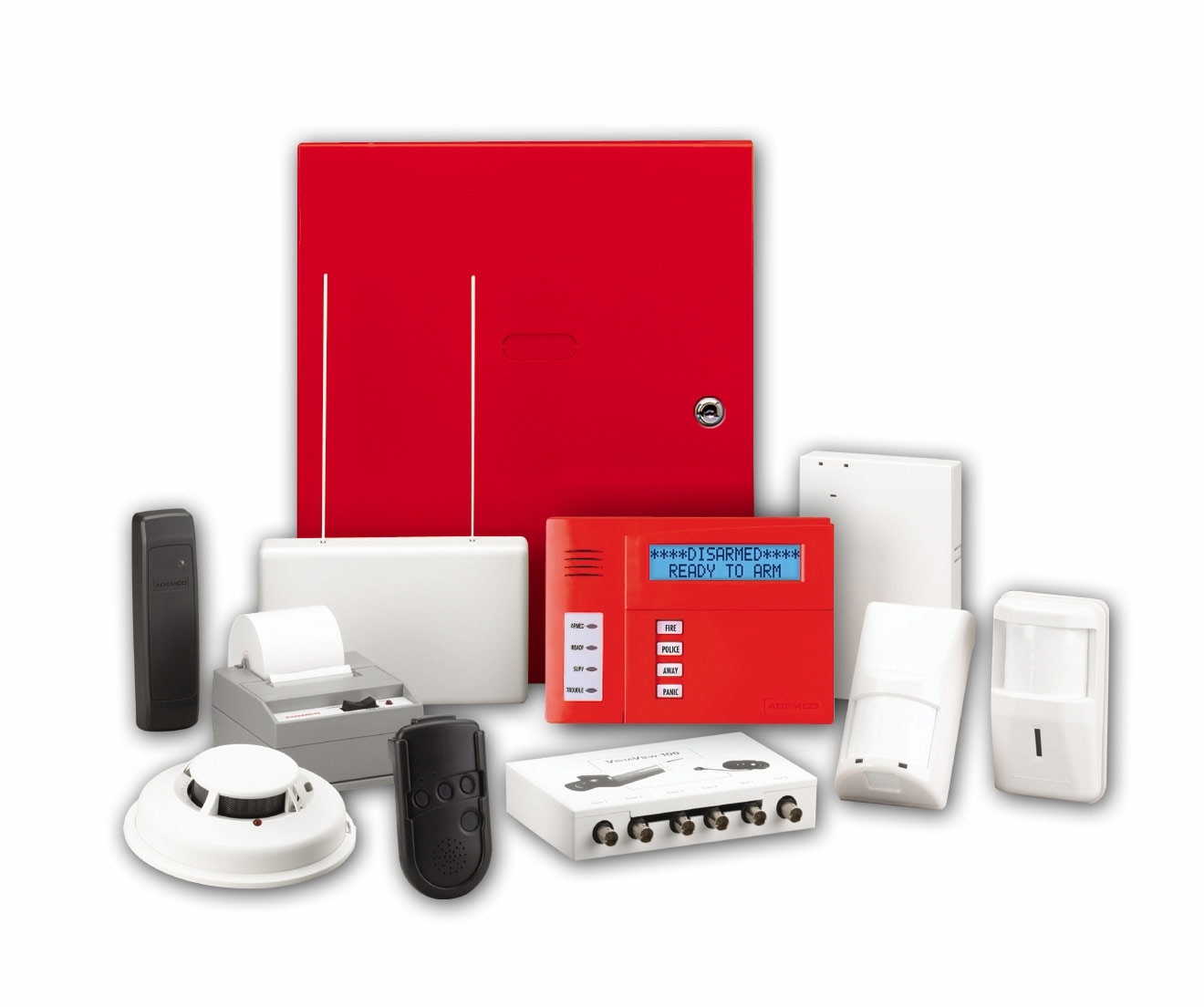

Honeywell V128FBP-9

• Eight hardwired zones standard, expandable to 120 V-Plex addressable points/zones or 128 wireless points/zones
• Can control eight separate areas independently (8 partitions)
• Supports wireless fire and burglary devices
• Stores up to 512 events
• Accommodates 150 user codes and up to 250 access card holders using VISTAKEY®
• Supports V-Plex addressable VISTAKEY access control (1 to 8 doors)
• Two on-board notification (bell) circuits delivering 2.3A @ 12V
• Automatic smoke detector sensitivity maintenance testing
• Four-wire smoke reset using onboard J2 output trigger
• Supports Dynamic Signaling for AlarmNet Communicators
• Supports Internet and GSM alarm reporting*
• Supports graphical user interfaces for burglary use
• Supports 6160CR-2 multi-LED fire keypad
• Listed to UL864 9th Edition
• Upload/download via Ethernet when used with Ethernet devices.
• Carbon monoxide (CO) zone support

Electrical

1. Primary power: 18VAC @ 72VA Honeywell No. 1451
2. Control panel quiescent current draw: 300mA
3. Backup battery: 12VDC, 12AH min to 34.4AH max Lead acid battery (gel type)
4. Alarm power: 12VDC, 1.7A max for each notification (bell) circuit output Total 2.3A 12V
5. Aux. standby pwr: 12VDC, 1A max Total power: 2.3A at 12VDC
6. Standby time: 24 hours with 1A standby load using 34.4AH battery
7. Fusing: Battery input, aux. and notification (bell) circuit outputs are protected using PTC circuit protectors. All outputs are power limited. Optional 24-volt kit
