Network Video Recorder CJ-HDR108A
- SKUCJ-HDR108A
- Brandspanasonic
- Originschina
- Price:Liên hệ
- Status:Hàng sẵn kho
- Guarantee:12 tháng
Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.
In addition, Panasonic also has a factory in Japan that specializes in the production of surveillance camera equipment to serve the needs of domestic market & export. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to users.

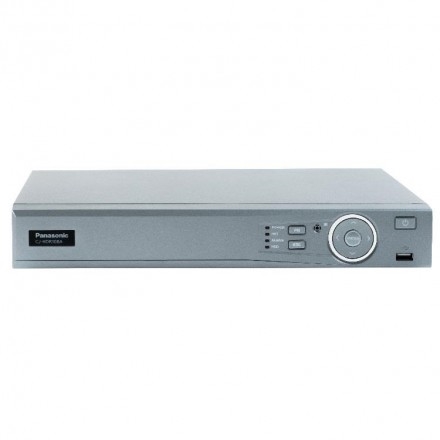

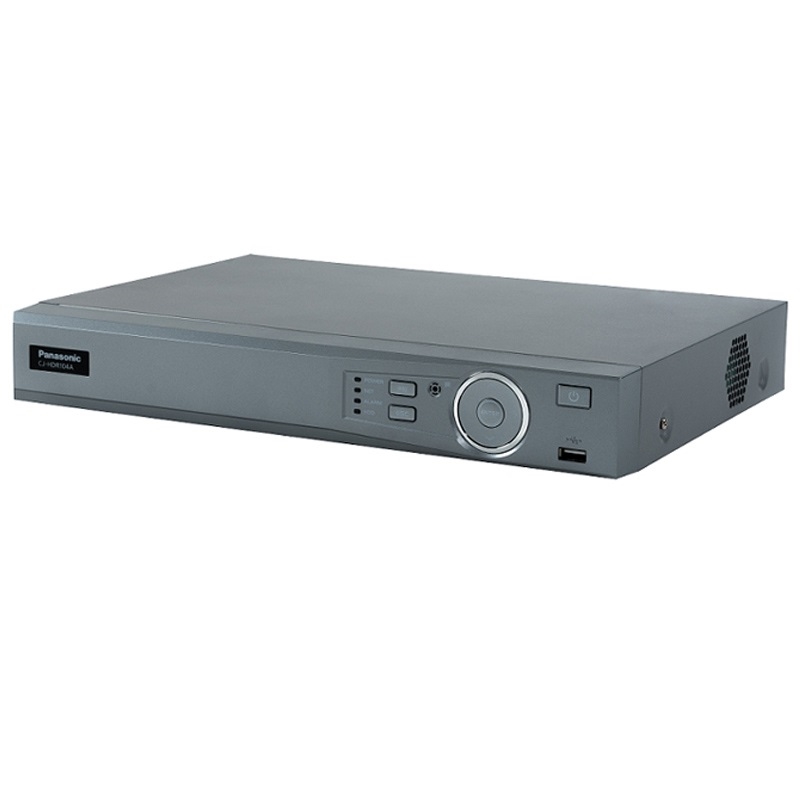

Recorder CJ-HDR108A is a product of Panasonic brand, exquisite design, beautiful, combined with outstanding features.
• Video compression standard: H.264
• Simultaneous HDMI / VGA video output port
• Supports 1 SATA port, Supports hard drives up to 8TB, 2USBs
• Zoom Digital during live streaming & playback
• Devices: iPhone, iPad, Android
Model | CJ-HDR108A | |
Video/Audio IF | ||
| Video Input | 8 CH, BNC | |
| Type | HDCVI | 720P/1080P |
| Analog | PAL/NTSC | |
| Video Output | 1 HDMI, 1 VGA | |
| Audio Input | 1 CH, RCA | |
| Audio Output | 1 CH, RCA | |
| Two-way Talk | Reuse audio input/output CH 1 | |
Display | ||
| Output Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Multiscreen Mode | 1/4/8/9 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Video/Audio Format | ||
| Video/Audio Compression | H.264/G.711a | |
| Record Rate* | Main Stream | 1280*1440/1080P/1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
|
| Sub Stream | D1/CIF/QCIF (1~15fps) | |
| Bit Rate | 1Kbps~6144Kbps per channel | |
| Record Mode | Manual, Schedule (Regular, Continuous), Alarm, MD, Stop | |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 0~30 sec, Post-record: 10~300 sec | |
Alarm/Event | ||
| Trigger Events | Recording, PTZ, Tour, Email, FTP, Snapshot, Buzzer, Show Message, Alarm Upload and Log | |
| Video Detection | Motion Detection, MD Zones: 396 (22×18)/330 (22×15), Video Loss, Tampering | |
Playback & Backup | ||
| Sync Playback | 1/4/9 | |
| Search Mode | Time/Date, Alarm, MD and Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom, Customized playback, Splice playback | |
| Backup Mode | USB Device/Network | |
Network | ||
| Network Interface | RJ-45 port (100M) | |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, EZ Remote | |
| Max. User Access | 128 users | |
| Mobile Device | iPhone, iPad, Android | |
HDD | ||
| Type | 1 SATA port, up to 8TB | |
External Interface | ||
| USB Interface | 2 ports (1 rear), USB2.0 | |
| RS485 Camera Interface | 1 port, for PTZ Control | |
General Specifications | ||
| Power Supply | DC12V/2A | |
| Power Consumption | <10W (without HDD) | |
| Working Environment | -10°C~+55°C/0%~90%RH | |
| Dimension (W×D×H) | Mini 1U, 325mm×257.15mm×55mm | |
| Weight | 1.20kg (without HDD) | |
