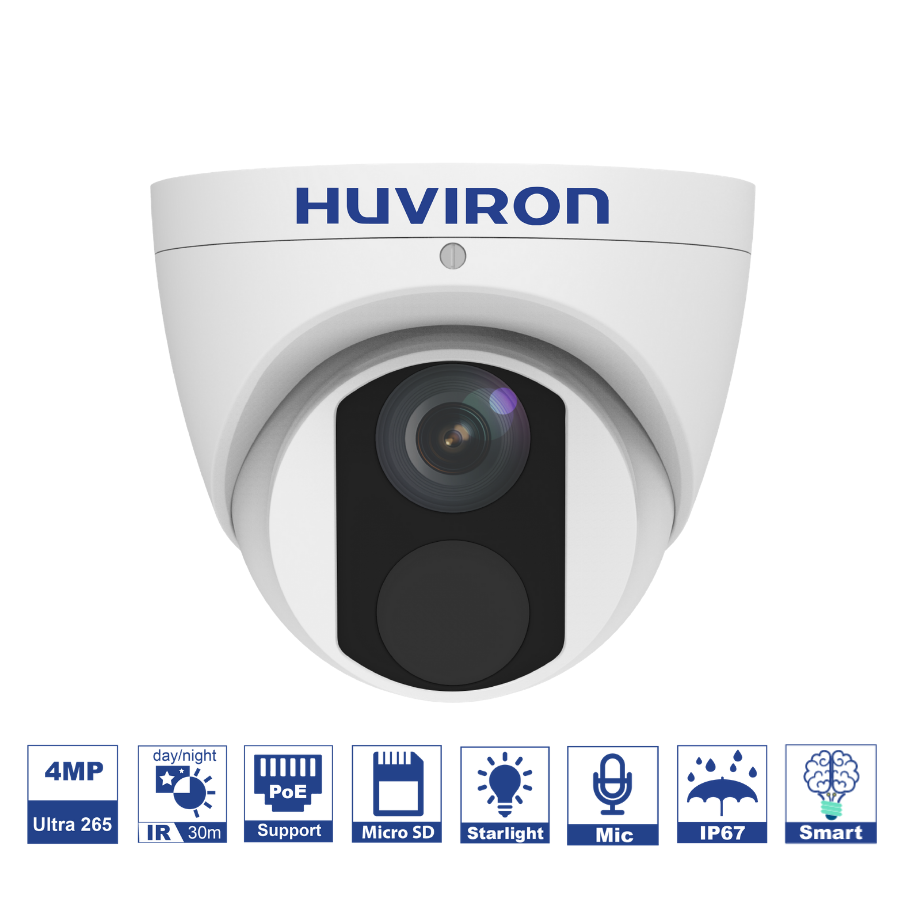

Camera Dome HU-ND422DMS/I3E

SKUHU-ND422DMS/I3E
Brandshuviron
OriginsAsia
Price:contact
Status:Available Stock

Huviron is a Korean origin brand, providing security products, solutions and CCTV systems.

Camera Huviron HU-ND422DMS/I3E is a product of the Huviron brand, with a sophisticated design combined with outstanding features, suitable for installation in locations such as stores, supermarkets, offices, production workshops…

. Image sensor: 1/3″ CMOS sensor
. Resolution: 4Mp
. Image compression standard: Ultra 265, H.265, H.264
. Video stream: 2688*1520/ 2560*1440@25fps; 2304*1296/ 1920*1080@30fps, 1280*720@25fps

	ModelNo.ZZ	HU-ND422DMS/I3E
Camera	Image Sensor	1/3“ CMOS sensor
	Resolution	4Mp
	Minimum Illumination	Colour:0.005Lux(F1.6,AGCON),0Luxwith IR on
Lens	Focus length	2.8mm
	Lens Type	Fixed
	View Angle	H: 105.30, V: 570, O: 136.90
	DORI distance	D: 63m, O: 25.2m, R: 12.6m, I: 6.3m
Night vision	IR range	Up to 30m
Camera features	Starlight	Support
	DNR	2D/3D DNR
	S/N	>52dB
	WDR	120dB
	HLC	Support
	BLC	Support
	Defog	Digital Defog
	Privacy Mask	Up to 4 areas
	Motiondetection	Upto 4 areas
Smart	Behavior Detection	Human Body Detection, Motion Detection, Tampering Alarm
Video	Video compression	Ultra 265, H.265,H.264, MJPEG
	H.264 code profile	Baseline profile, MainProfile, High Profile
	Frame rate	Main Stream: 4MP(26881520/25601440), Max 25fps; 3MP(23041296), Max 30fps;2MP(19201080), Max 30fps; SubStream: 720P(1280*720), Max 25fps
Audio	Built-inMic	Support
	AudioCompression	G.711
	Suppression	Support
	Sampling Rate	8kHz
Network	WebBrowser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Onvif	ONVIF (Profile S, Profile T), API
	Interface	10/100M Base-TX Ethernet
General	Storage	MicroSD, up to 256 GB
	Power	DC 12V±25%,PoE(IEEE802.3af),Max3W
	Waterproof	IP67
	SurgeProtection	2kV
	WorkingEnviroment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
	Weight	0.35kg
	Dimensions	Φ118 x 96mm (Φ4.6” x 3.8”)
