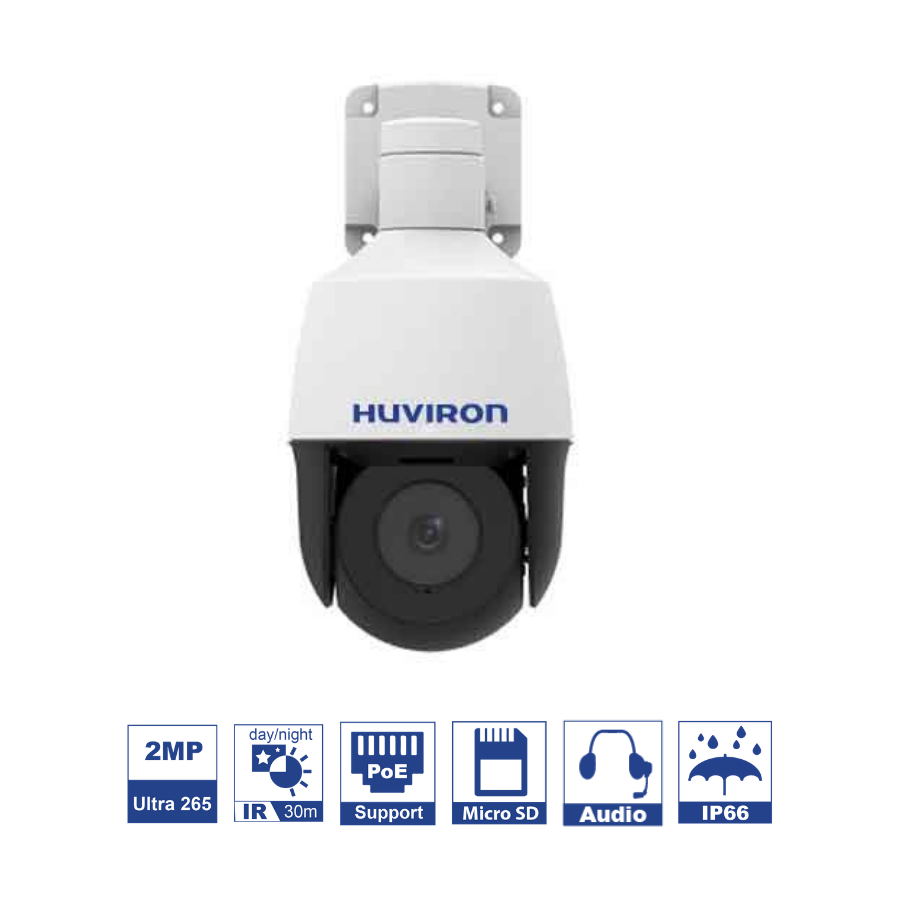

Camera PTZ HU-NZ22F4/I3E

SKUHU-NZ22F4/I3E
Brandshuviron
OriginsAsia
Price:contact
Status:Available Stock
Guarantee:24 months

Huviron is a Korean origin brand, providing security products, solutions and CCTV systems.

The HU-NZ22F4/I3E PTZ camera is a product of the Huviron brand, with a sophisticated design combined with outstanding features, suitable for installation in locations such as stores, supermarkets, offices, factories, hospital, hotel…

. Image sensor: 1/2.8” CMOS sensor
. Resolution: 2Mp
. Image compression standard: Ultra 265, H.265, H.264
. Video Stream: 1920*1080/ 1280×720/352*288@30 fps

	ModelNo.ZZ	HU-NZ22F4/I3E
Camera	Image Sensor	1/2.8“ CMOS sensor
	Resolution	2Mp
	Minimum Illumination	Colour:0.001Lux(F2.0, AGC ON), 0Lux with IR on
Lens	Focus length	4mm
	Lens Type	Fixed
	View Angle	H:84.30,V:42.80, O:103.70
	DORI distance	D:62.1m, O:24.8m, R:12.4m, I:6.2m
Night vision	IR range	Up to30m
Camera features	DNR	2D/3D DNR
	S/N	>52dB
	WDR	120dB
	HLC	Support
	BLC	Support
	Flip	Normal/Vertical/Horizontal/180°
	Privacy Mask	Up to 8 areas
	Motion detection	Up to 4 areas
Video	Video compression	Ultra 265, H.265, H.264, MJPEG
	H.264 code profile	Baseline profile, MainProfile
	Frame rate	Main Stream: 19201080/720P,Max30 fps; Sub Stream: 1280×720,Max30 fps; ThirdStream: CIF(352288), Max30 fps

Audio



	Sampling Rate	8kHz
Network	WebBrowser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Client	Hu-Viewer,Hu-VMS
	Onvif	ONVIF (Profile S, Profile T), API
	Interface	10/100M Base-TX Ethernet
PTZ	Preset	256
	Pan range	3450
	Pan Speed	0.10~500/s, preset speed500/s
	Tilt range	900
	Tilt speed	0.10~ 400/s, preset speed 400/s
	Patrol	Preset patrol, Route patrol
General	Storage	Micro SD, up to128GB
	Power	DC 12V±25%,PoE(IEEE802.3at), Max 14W
	Waterproof	IP66
	Surge Protection	4kV
	WorkingEnviroment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
	StorageEnviroment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
	Weight	1.06kg
	Dimensions	Φ133mm*248.4mm (Φ5.2”x 9.8”)
