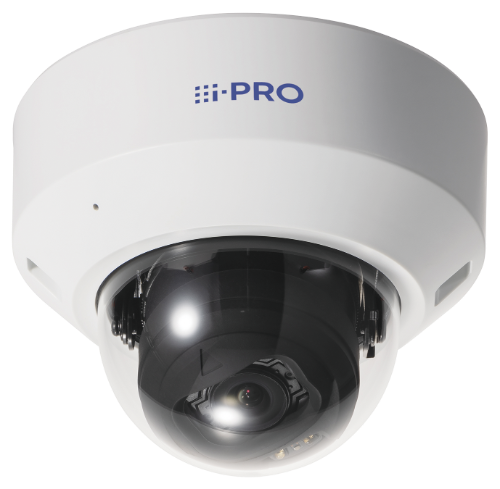

Camera Ipro WV- S2136L

  • SKUWV- S2136L
  • BrandsIpro
  • OriginsJapan
  • Price:Contact
  • Status:Available Stock

IPRO is a global leader of advanced sensing technologies in the fields of Intelligent Surveillance, Public Safety, and Industrial/Medical Imaging. Established in 2019, IPRO was built on a legacy of over 60 years of innovation with Panasonic.

The company’s products, software and services extend human senses to capture moments of truth with innovations that inform and protect. In order to help create a safer world, IPRO supports the work of professionals who protect and save lives.

WV-S2136 has onboard AI functionality. AI-based high precision analysis helps surveillance operations and crime prevention
operations more efficiently, whereas these operations previously required dedicated manpower.
There are 3 main AI functions available through the camera: detecting changes in captured scenes, optimizing the image settings of
the camera (based on captured scene analysis) for better image usability, and optimizing video compression through captured
scenes to save bandwidth at 50%* lower than existing cameras while maintaining image quality.
*Compared to Smart Coding ON with H.265

Optimization of image quality and data compression using AI engine
– AI detects, identifies and determines movement and object (humans, vehicles and two-wheel motorcycles / bicycles).
– Intelligent Auto and Color Night Vision determine human faces and captures them in the most visible state.
– Smart Coding determines moving objects, identifies where there is no movement, and performs efficient data compression.

Easy installation and usability
– Multi AI Server is a easily and quickly search function based on the face, person attributes, and vehicle attributes
detected by AI, and is composed of AI plug-in software, Edge AI application, and Server AI software.
– Camera with AI engine automatically applies optimal settings, allowing you to capture high-quality images effortlessly.
– Easy Kitting connect the network cable to the camera body simply by opening a part of the packaging, saving you time and
working space.

3rd party relationship
– To enable 3rd party companies to develop their applications using SDK.
– Users can freely combine applications and introduce analysis software that is the best match for their requirements.

Image SensorApprox. 1/2.8 type CMOS image sensor
Minimum IlluminationColor : 0.007 lx (30IRE, F1.3, 1/30s) *1 Color : 0.009 lx (50IRE, F1.3, 1/30s) BW : 0.006 lx (50IRE, F1.3, 1/30s) BW : 0 lx(50IRE, F1.3,1/30s with IR LED)
White BalanceATW1 / ATW2 / AWC
Shutter Speed[60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps*2 mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps*2 mode] 1/25 Fix to 1/10000 Fix
i-PRO Intelligent AutoOn / Off
i-PRO Super Dynamic*3On / Off, The level can be set in the range of 0 to 31.
Dynamic RangeMax.144 dB (Super Dynamic : On, Level 31)
Adaptive Black StretchThe level can be set in the range of 0 to 255.
Back light compensation / High light compensationBLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
Fog CompensationOn / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC)The level can be set in the range of 0 to 11.
Color/BW (ICR)Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED LightHigh / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) *1 50 m {Approx. 164 ft} (50IRE)
Digital Noise Reduction (DNR)The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)On / Off, 4 areas available
Scene Change DetectionOn / Off, 1 areas available
Audio DetectionOn / Off
AI Sound classificationGunshot, Yell, Vehicle horn, Glass break
AI AnalyticsYes
Privacy ZoneOn / Off, Up to 8 zones available
VIQSOn / Off, Up to 8 zones available
Image rotation*40 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD)On / Off, Up to 40 characters (alphanumeric characters, marks)
Focus AdjustmentAuto focus / Manual
Optical Zoom3.1 x (Motorized zoom / Motorized Focus)
Extra zoom3.1x – 9.3x (when resolution is 640 x 360)
Focal Length2.9 – 9 mm {1/8 inches – 13/32 inches}
Angular Field of ViewHorizontal : 36° (TELE) – 115° (WIDE), Vertical : 20° (TELE) – 61° (WIDE)
Maximum Aperture Ratio1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focusing Range0.3 m {11-13/16 inches} – ∞
Detect (25ppm / 8ppt)Wide: 24.5 m / 80.3 ft, Tele: 118.2 m / 387.7 ft
Observe (62.5ppm / 19ppt)Wide: 9.8 m / 32.1 ft, Tele: 47.3 m / 155.1 ft
Recognize (125ppm / 38ppt)Wide: 4.9 m / 16.1 ft, Tele: 23.6 m / 77.5 ft
Identify (250ppm / 76ppt)Wide: 2.4 m / 8.0 ft, Tele: 11.8 m / 38.8 ft
Adjusting AngleHorizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100°
Camera ControlBrightness, AUX On / Off
AudioMic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / Hig
GUI / Setup Menu LanguageEnglish, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)[16:9 mode (60 fps mode)]*3 , [16:9 mode (30 fps mode)], [16:9 mode (50 fps mode)]*3 , [16:9 mode (25 fps mode)] 1920×1080, 1280×720, 640×360, 320×180 [4:3 mode(30 fps mode)]*2 , [4:3 mode (25 fps mode)]*2 1280×960, VGA, QVGA [4:3 mode(15 fps mode)]*2 , [4:3 mode (12.5 fps mode)]*2 2048×1536*3, 1280×960, VGA, QVGA
JPEG – Image Quality10 steps
i-PRO Smart CodingGOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
Audio CompressionG.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*6 : 64 kbps / 96 kbps / 128 kbps
Audio Transmission ModeOff / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
No. of Simultaneous UsersUp to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Available SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB
Mobile Terminal CompatibilityiPad, iPhone, AndroidTM terminals
ONVIF ProfileG / M / S / T
Alarm Source3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm ActionsSDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Monitor Output (for Adjustment)VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio Outputø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals (Cable)ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
SafetyUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMCFCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Power Source and Power ConsumptionDC power supply : DC12 V 720 mA, Approx. 8.6 W PoE (IEEE802.3af compliant) Device :DC48 V 180 mA, Approx. 8.7 W (Class 0 device)
Ambient Operating Temperature-10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity10 to 90 % (no condensation)
Dimensionsø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches}
Mass (Approx.)Approx. 470 g {1.04 lbs.}
