I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.
Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy tại Nhật Bản chuyên sản xuất các dòng thiết bị camera giám sát phục vụ nhu cầu thị trường nội địa & xuất khẩu hạn chế khi có yêu cầu. Các sản phẩm camera này được sản xuất trên dây chuyền công nghệ cao, kết hợp với tính chuyên nghiệp trong quản lý & sản xuất của người Nhật – Đem đến giá trị niềm tin cho người sử dụng.

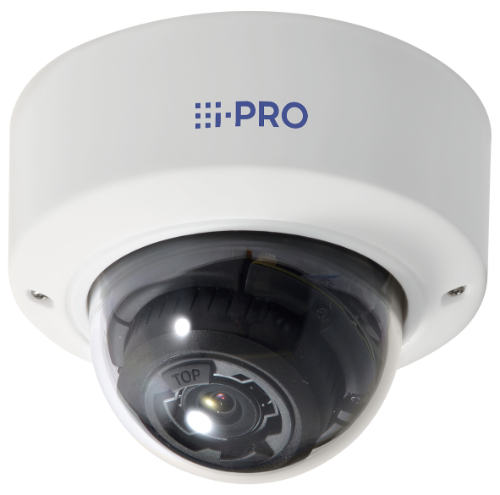

WV- S2272L là sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…
Extreme image quality allows evidence to be captured even under challenging conditions
– True 4K lens and large image sensor realize wide area surveillance with improved high-quality images
– Auto shutter speed control for moving objects
– Outstanding low-light performance in true color with low noise for nighttime applications
– Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 30 m (98 feet) irradiation distance
– Environmental durability: IK10
Extreme bandwidth compression with evolved Smart Coding
– Longer recording and less storage requirements compared to traditional H.265 compression techniques
– Improved video compression technology detects objects such as faces, humans, vehicles and motorcycles / bicycles within the image and compresses the areas without objects in order to reduce transmitted data while maintaining image quality
Easy installation
– Allows you to connect the network cable to the camera body simply by opening a part of the package, which saves you time and workspace, especially when handling multiple cameras
COMPONENT | SPECIFICATION |
---|---|
Image Sensor | 1/1.8 type CMOS image sensor |
Minimum Illumination | Color : 0.09 lx, BW : 0.05 lx (F1.5, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (F1.5, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.006 lx, BW : 0.003 lx (F1.5, Maximum shutter : max. 16/30s, AGC : 11) |
White Balance | ATW1/ATW2/AWC |
Shutter Speed | [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
Intelligent Auto | On / Off |
Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
Dynamic Range | Max. 132 dB (Super Dynamic : On, Level : 31) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / Intelligent Auto : Off) |
Fog Compensation | On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off) |
Maximum gain | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 30 m {Approx. 98 ft} |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On / Off, 4 areas available |
Scene Change Detection | On / Off, 1 area available |
Intelligent VMD (i-VMD) | Type 7 *Bundled License |
Privacy Zone | On / Off, Up to 8 zones available |
Image Rotation | 0 ° (Off) / 90 °/ 180 ° (Upside-down) / 270 ° |
Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
Optical Zoom | 2.0x (Motorized zoom / Motorized focus) |
Extra optical zoom | 6.0x (when resolution is 1280×720) |
Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
Focal Length | 4.3 mm – 8.6 mm {5/32 inches – 11/32 inches} |
Maximum Aperture Ratio | 1 : 1.5 (WIDE) – 1 : 2.4 (TELE) |
Focus Range | 1 m {39-3/8 inches} – ∞ |
Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported. Horizontal: 52° (TELE) – 101° (WIDE), Vertical: 29° (TELE) – 55° (WIDE) |
Detect (25ppm / 8ft) | Wide: 63.31 m / 207.71 ft, Tele: 157.46 m / 516.61 ft |
Observe (62.5ppm / 19ft) | Wide: 25.32 m / 83.08 ft, Tele: 62.99 m / 206.64 ft |
Recognize (125ppm / 38ft) | Wide: 12.66 m / 41.54 ft, Tele: 31.49 m / 103.32 ft |
Identify (250ppm / 76ft) | Wide: 6.33 m / 20.77 ft, Tele: 15.75 m / 51.66 ft |
Adjusting Angle | Horizontal (PAN) angle : ±180°, Vertical (TILT) angle : -30 to +85°, Azimuth (YAW) angle : ±100° |
Camera Control | Brightness, AUX On / Off |
Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network IF | 10Base-T / 100Base-TX, RJ45 connector |
Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9 mode] *[4:3 mode] is not supported. 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 |
H.265/H.264 | Transmission Mode:Constant bit rate / VBR / Frame rate / Best effort Transmission Type:Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
JPEG | Image Quality:10 steps |
Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*7 : 64 kbps / 96 kbps / 128 kbps |
Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, SRTP, SSL/TLS IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, SRTP, SSL/TLS |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Nguồn cảnh báo | 3 terminals input, VMD alarm, SCD alarm, Command alarm |
Cảnh báo | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
Đầu ra hình (for Adjustment) | VBS : 1.0 V [p-p] / 75 ‑, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
Đầu vào âm thanh | ø3.5 mm stereo mini jack For microphone input :Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Xấp xỉ 2 k‑ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line input :Input level : Xấp xỉ –10 dBV |
Đầu ra âm thanh | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Xấp xỉ 600 ‑ (unbalanced) Output level : –20 dBV |
External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
Độ an toàn | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Nguồn điện và mức tiêu thụ | DC power supply : DC 12 V 890 mA/Xấp xỉ 10.7 W PoE (IEEE802.3af compliant) Device : DC48 V 230 mA/ Xấp xỉ 11.0 W (Class 0 device) |
Nhiệt độ hoạt động | -10 °C to +50 °C (+14 °F to +122 °F) |
Độ ẩm hoạt động | 10 to 90 % (no condensation) |
Chống sốc | IK10 (IEC 62262) |
Kích thước | ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
Trọng lượng | Xấp xỉ 830 g {1.83 lbs} |
