This HD / 60 fps Compact Dome Network Camera is based on the concept of “i-PRO EXTREME”.

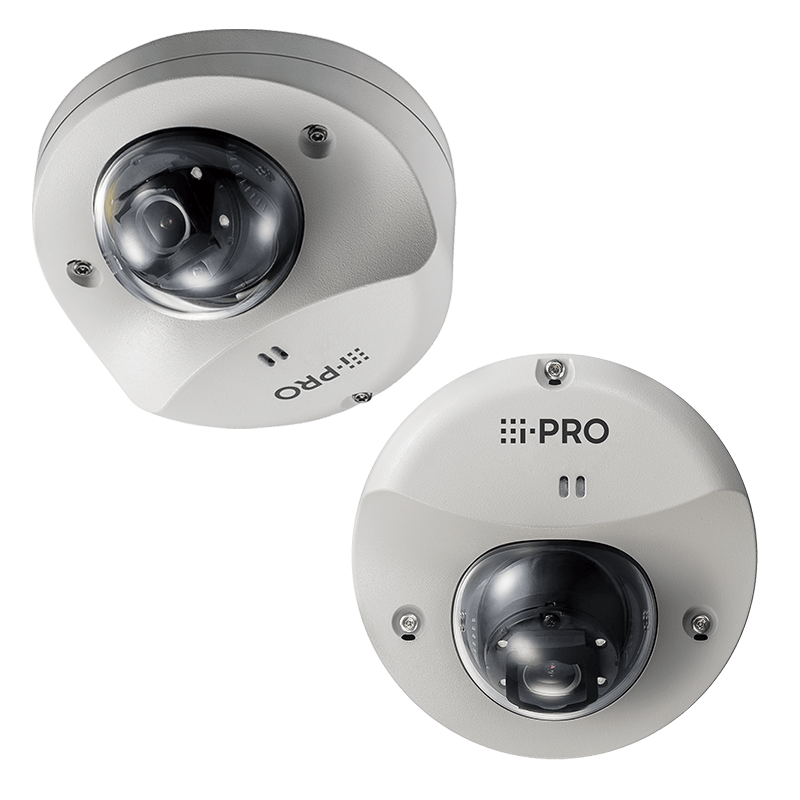

Compact size HD Dome Network Camera
The compact body with the diameter of 109mm and the height of 53mm blends in to walls and ceilings.
Even when installing the camera in a store/shop with atmosphere, the installation can be made without destroying the atmosphere.
Extreme image quality allows evidence to be captured even under challenging conditions
– Auto Shutter speed control for fast moving objects with Intelligent Auto
– Sharp and clear images of a walking person day & night
– Outstanding low light performance in true color with low noise for night time applications
– Super Dynamic 134dB for backlit situations involving headlights and shadows on night streets
– Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 15 m (49 feet) irradiation distance
Extreme H.265 compression with new Smart Coding
– Longer recording and less storage compared to any H.264 based compression techniques
– New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
– New “Smart Facial Coding” adds more bandwidth reduction for ID camera applications mainly capturing faces
*Region of Interest
Extreme Reliability
It is robust enough for vehicles such as buses and trains to achieve stable monitoring.
– Railway Applications : EN50155:2-17 Class OT2/ST2, IEC62236-3-2
– Water and Shock Resistance : IP66, IK10
– Fire safety on rolling stock : EN45545-2 compliant, NFPA130
Model | WV-S3512LM |
Camera | |
Image Sensor | Approx. 1/3 type CMOS image sensor |
Minimum Illumination | Color: 0.02 lx, BW: 0.01 lx (F2.3, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (F2.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0013 lx, BW: 0.0007 lx (F2.3, Maximum shutter: max. 16/30s, AGC: 11) |
White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
Maximum shutter | Max. 1/10000 s to Max. 16/30 s |
Intelligent Auto | On/ Off |
Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
Dynamic Range | Max.134 dB typ. (Super Dynamic: On) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust : Off) |
Maximum gain | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance : 15 m {Approx. 49 ft} |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 4 Bundled License |
Privacy Zone | On/ Off (up to 8 zones available) |
Image rotation | 0°/ 90°/18 0°(Upside-down)/ 270° |
Mirror | On/ Off |
CameraTitle (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Lens | |
Zoom Ratio | 1 x Optical |
Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
Focal length | 2.8 mm {1/8 inches} |
Angular Field of View | [16 : 9 mode] Horizontal : 97° Vertical : 54° [4 : 3 mode] Horizontal : 97° Vertical : 72° |
Maximum Aperture Ratio | 1 : 2.3 |
Focus range | 0.5 m {19-11/16 inches} – ∞ |
Adjusting Angle | |
Adjusting Angle | Horizontal (PAN) angle : ±45°, Vertical (TILT) angle : 0 to +90° Azimuth (YAW) angle : ±90° |
Browser GUI | |
Camera Control | Brightness |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, M12 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | – 1.3 Megapixel [16 : 9] (30/60 fps1,280 x 720/ 640 x 360/ 320 x 180 – 1.3 mega pixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
H.265/ H.264 | – Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast |
JPEG | Image Quality: 10 steps |
Smart Coding | GOP(Group of pictures) control [When H.264 is selected] On (Mid)/ On (Low)/ Off [When H.265 is selected] On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off |
Smart Facial Coding* Off / On (AUTO VIQS)/ On(Smart Facial Coding) *Smart Facial Coding is only available with Stream(1). | |
Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Supported Protocol | – IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
microSDXC/microSDHC/ microSD Memory Card | – H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible microSDXC/microSDHC/microSD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
Mobile Terminal Compatibility | iPad, iPhone, Android terminals |
Alarm | |
Alarm Source | VMD alarm, Command alarm, Audio detection alarm |
Alarm Actions | microSDXC/microSDHC/microSD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/ Output | |
Built-in microphone | Nondirectional electret condenser microphone |
General | |
Safety | UL (UL60950-1 2Ed), c-UL (CAN/CSA C22. NO.60950-1-07), CE, IEC60950-1 EN45545 compliant, NFPA130 |
EMC | FCC (Part15 Subpart B, ClassA, SDoC), ICES-003 ClassA, EN55032 ClassB, EN55024, ECE-R10, EN50498, EN50121 |
Power Source and Power Consumption | PoE (IEEE802.3af compliant, alternative A) Device: DC48V/ 80mA, Approx. 3.8 W (Class 2 device) |
Ambient Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F)*11 {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)} |
Ambient Operating Humidity | 10 to 100 % (no condensation) |
Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X compliant |
Shock Resistance | IK10 (IEC 62262) |
Railway Application | EN50155: 2017 Class OT2/ST2 (EN 50155: 2007 Class TX), IEC62236-3-2 |
Dimensions | ø109 mm x 53 mm (H) {ø4-9/32 inches x 2-3/32 inches (H)} Dome radius 27 mm {1-1/16 inches} |
Mass (approx.) | Approx. 410 g {0.91 lbs} |
Finish | Main body: Aluminum die cast, Light gray Dome section: Polycarbonate resin, Clear |
