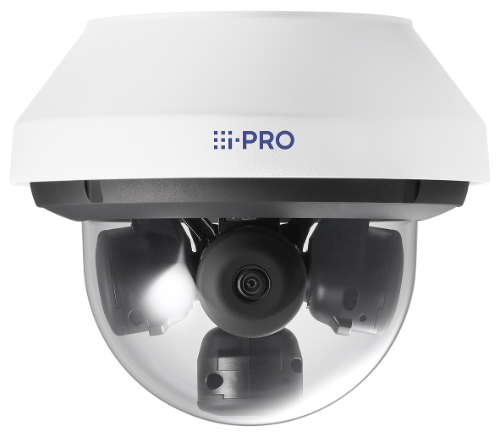

4 x FHD(8MP) Multi-Sensor Network Camera
4 x FHD(8MP) 1920×1080 up to 30fps
iA (intelligent Auto)
Super Dynamic 120dB
Color night vision (0.003 to 0.05 lx)
H.265 Smart Coding
ClearSight Coating
Continuous view assistance
Wide range tilt angle adjustment mechanism
| COMPONENT | SPECIFICATION |
|---|---|
| Minimum Illumination | Color : 0.05 lx, BW : 0.03 lx (50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11) Color : 0.003 lx, BW : 0.002 lx (50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11) *1 |
| Intelligent Auto | On / Off |
| Maximum Shutter | 30 fps mode: Max.1/10000s to Max.16/30s 25 fps mode: Max.1/10000s to Max.16/25s |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB typ. (Super Dynamic : On, level : 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), High light compensation (HLC), Fog compensation, Digital noise reduction |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Privacy Zone | On / Off, up to 8 zones available |
| Upside-Down | On / Off |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Adjusting Angle | Camera 1, 2, 3 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : +30 ° to + 80 ° Azimuth (YAW) angle : ±50 ° Camera 4 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : –15 ° to + 80 ° Azimuth (YAW) angle : ±50 ° *The above is the adjustable range of a single camera. The adjustable range of each camera varies according to the positional relationship with other cameras. |
| Zoom Ratio | 2.5x Optical zoom (Motorized zoom / Motorized focus) 7.5x Extra Optical Zoom (when resolution is 640×360) |
| Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
| Focal Length (f) | 2.9 mm – 7.3 mm {1/8 inches – 7/32 inches} |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0 (TELE) |
| Focus Range | 1.5 m {4.92 feets} – ∞ |
| Angular Field of view with one lens | [16 : 9] Horizontal : 45 ° (TELE) – 104 ° (WIDE) Vertical : 25 ° (TELE) – 58 ° (WIDE) |
| Detect (25ppm / 8ppf) | Wide: 30 m / 98.4 ft, Tele: 92.7 m / 304.2 ft |
| Observe (62.5ppm / 19ppf) | Wide: 12 m / 39.4 ft, Tele: 37.1 m / 121.7 ft |
| Recognize (125ppm / 38ppf) | Wide: 6 m / 19.7 ft, Tele: 18.5 m / 60.8 ft |
| Identify (250ppm / 76ppf) | Wide: 3 m / 9.8 ft, Tele: 9.3 m / 30.4 ft |
| Camera Control | Brightness |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX / 1000Base-T, RJ45 connector |
| Resolution with one lens | [16 : 9 mode] *Cannot be changed. 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
| Supported Protocol | l Maximum concurrent access number SDXC/SDHC/SD Memory Card (Option) Mobile Terminal Compatibility ONVIF profile Alarm Source Alarm Actions Safety EMC Power Source and Power Consumption Ambient Operating Temperature Ambient Operating Humidity Dehumidification Device Water and Dust Resistance Shock Resistance Wind Resistance Dimensions Mass (approx.) Finish IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum Concurrent Access Number | Up to 24 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC/SD card : i-PRO 32 GB*, 64 GB**, 128 GB**, 256 GB**, 512GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF Profile | G/S |
