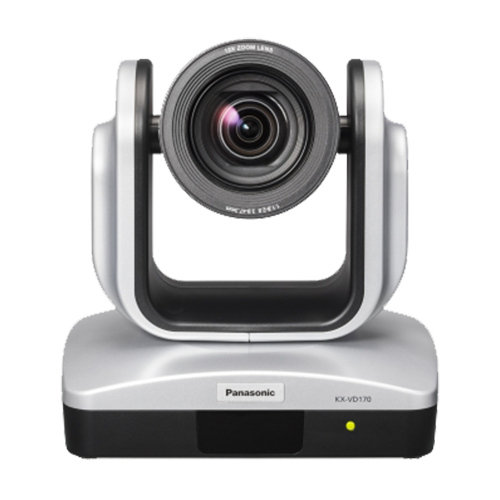

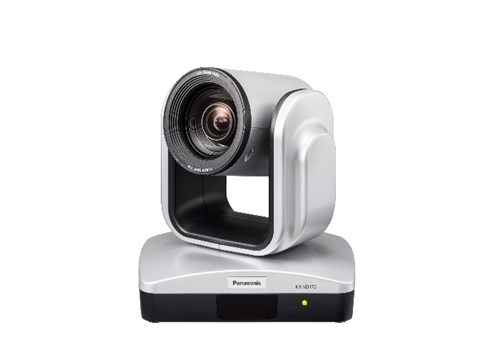

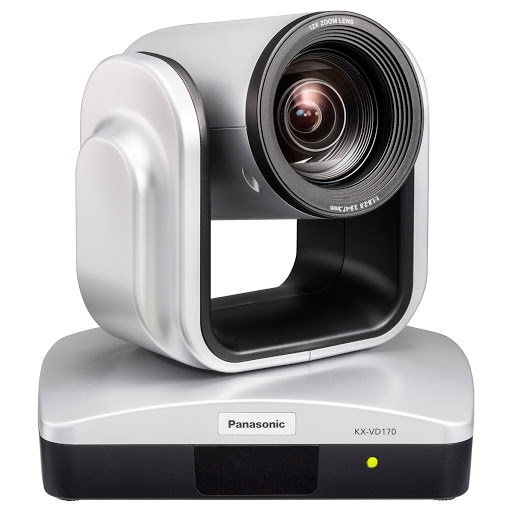

Camera Panasonic KX-VD170

Panasonic Corporation provides products in the group of security cameras (Security camera & CCTV / Surveillance system). These camera products are manufactured on high-tech lines, combined with the professionalism in management & production of the Japanese – Bringing trust value to users.

– Effective Pixels 1920 x 1080p
– Pan / Tilt Pan: ±130°, Tilt: ＋90°-25
– Zoom (optical/digital) 12x / 10x
– Angle of view (optical zoom) Horizontal angle of view 72.5 º (Wide end) – 6.3º (Tele end)
– Vertical angle of view 44.9º (Wide end) – 3.8º (Tele end)
– F1.8 (Wide end) – F2.8 (Tele end)
– Presets 12 positions
– Connection Cable HDMI
– Dimensions (width x depth x height) Approx. 180 mm x approx. 145 mm x approx. 184 mm
– Weight Approx. 1.6 kg
– Power Consumption Power supply voltage:
– 12 VDC±10% (with AC adaptor attached) Consumption current: 1.2 A
– Operating Temperature 0 °C to 40 °C
– Operating Humidity 20 % to 90 % (non-condensing)

Effective Pixels	1920 x 1080p
Pan / Tilt	Pan: ±130°, Tilt: ＋90°-25
Zoom (optical/digital)	12x / 10x
Angle of view (optical zoom)	Horizontal angle of view 72.5 º (Wide end) – 6.3º (Tele end) Vertical angle of view 44.9º (Wide end) – 3.8º (Tele end) F1.8 (Wide end) – F2.8 (Tele end)
Presets	12 positions
Connection Cable	HDMI
Dimensions (width x depth x height)	Approx. 180 mm x approx. 145 mm x approx. 184 mm
Weight	Approx. 1.6 kg
Power Consumption	Power supply voltage: 12 VDC±10% (with AC adaptor attached) Consumption current: 1.2 A
Operating Temperature	0 °C to 40 °C
Operating Humidity	20 % to 90 % (non-condensing)
