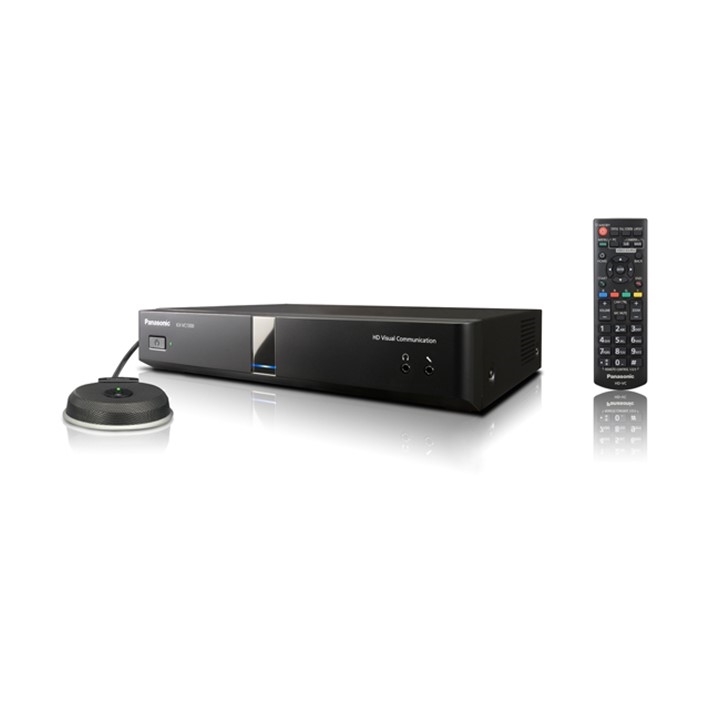

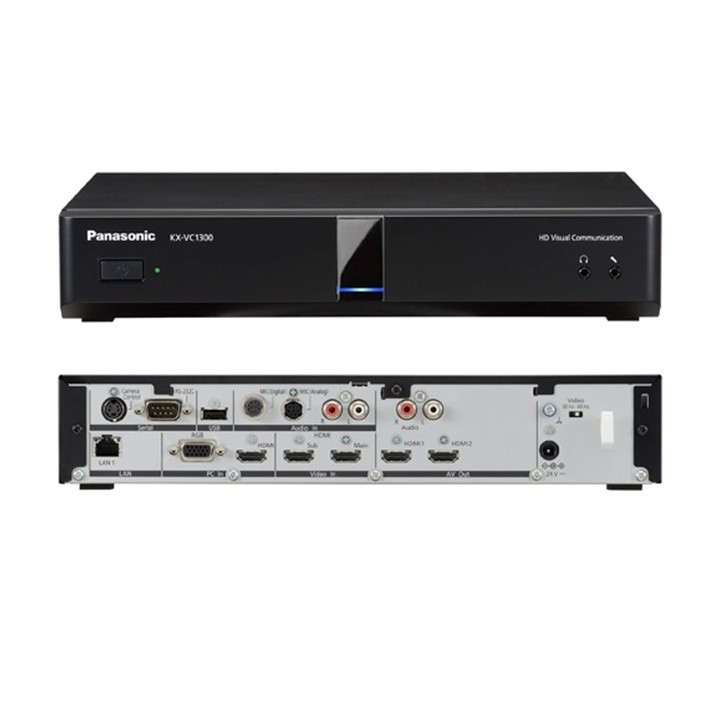

Panasonic KX-VC1300
- SKUKX-VC1300
- Brandspanasonic
- OriginsJapan
- Price:Contact
- Status:Available Stock
Panasonic Corporation provides products in the group of security cameras (Security camera & CCTV / Surveillance system). These camera products are manufactured on high-tech lines, combined with the professionalism in management & production of the Japanese – Bringing trust value to users.
- Video Conference system
- 4-Site Connection
- Multicast
- Participation in videoconferences using mobile devices
- Meetings can be held while displaying images of the other party’s site and PC data each on one of two monitors.
- Broadband Stereo Full Duplex Audio
- High quality video Full-HD 1080/60p
- The Rate Control function adjusts data traffic based on network congestion
- Remote Camera Control
- Smooth 2-way conversation with broadband stereo and unique Echo Canceller
- Easy-to-understand remote lectures and seminars are conducted at multiple sites
Main Unit | KX-VC1300 | ||
| Communication Method | SIP, H.323 | ||
| Video Compression Method | H.261 (mainstream only), H.263, H.263+, H.263++ (reception only), H.264 High Profile, H.264 Baseline Profile | ||
| Audio Compression Method | G.711 μ-law, A-law (3.4 kHz@64 kbps) G.722 (7.0 kHz@64 kbps) G.722.1 (7.0 kHz@32 kbps) G.722.1 Annex C (14.0 kHz@48 kbps/24 kbps) MPEG-4 AAC‑LD Mono (7.0 kHz@32 kbps, 14.0 kHz@64 kbps, 22.0 kHz@96 kbps) MPEG-4 AAC‑LD Stereo (14.0 kHz@64 kbps, 22.0 kHz@96 kbps) | ||
| No. of Channels | G.711/G.722/G.722.1/G.722.1 Annex C: 1 MPEG-4 AAC-LD Mono: 1/ MPEG-4 AAC-LD Stereo: 2 | ||
| Remote Camera Control | H.224, H.281 (Zoom/Pan/Tilt/Preset) | ||
| Dual Stream | Method | H.239 (H.323), BFCP (SIP) | |
| Multi-Monitor | 2 displays | ||
| No. of Applicable Resolution Frames | Main: Max. 1080p 30 frames/second, Sub: Max. 1080p 30 frames/second | ||
| Encryption | SRTP (AES 128 bit), H.235 (AES 128 bit) | ||
| Other | H.460 | ||
| Communication Bandwidth | 256 kbps to 18 Mbps | ||
| Video | Compatible Resolutions*1 | 176 x 144p, 352 x 240p, 352 x 288p, 512 x 288p, 640 x 480p, 704 x 480p, 704 x 576p, 768 x 432p, 800 x 600p, 1024 x 768p, 1280 x 720p, 1280 x 768p, 1280 x 800p, 1920 x 1080p | |
| No. of Frames | Max. 60 frames/second (for H.264 1080p) | ||
| Screen Display | Full-screen, Picture in Picture, Picture with Picture, Side by Side | ||
| Audio | Echo canceller, Auto gain control, Stationary noise reduction, Lip synch, Equalizer, Mic mute | ||
| I/O Terminals | Video Input | Camera*2 | HDMI main x 1, HDMI sub x 1 Input resolution: 1280 x 720p, 1920 x 1080i, 1920 x 1080p |
| PC | RGB x 1(Mini D-sub 15pin), HDMI x 1*2 Input resolution: VGA, SVGA, XGA, HD, WXGA, SXGA, FWXGA, WXGA+, WXGA++, UXGA, WSXGA+, Full-HD | ||
| Video Output | HDMI x 2 Supported output resolutions: 1920 x 1080i, 1920 x 1080p | ||
| Audio Input | Digital Boundary Microphone x 1 (KX-VCA001) Max. 4, Analogue Boundary Microphone x 1 (KX-VCA002) Max. 1, HDMI, Stereo mini-plug*3*4x 1 (ø3.5 mm), RCA*5(Stereo) x 1 | ||
| Audio Output | HDMI*6, Stereo mini-plug*3*7x 1 (ø3.5 mm), RCA*8x 1 (Stereo) | ||
| Network | RJ45 x 1 (100BASE-TX Full Duplex) | ||
| External Control | RS-232C x 1 (Also used for maintenance) | ||
| Others | USB 2.0*9x 1, Camera Control Terminal x 1 (Not used) | ||
| No. of Simultaneous Connection Sites | 4 | ||
| Content Sharing | PC (RGB/HDMI), Sub-camera (HDMI sub) | ||
| USB Host Mode (USB Memory) | Updating Software, Recording, Import: Contact List / Profile*10/ Configuration Data / Encryption Data / Start-up Screen / Delivery Tree List Export: Contact List / Profile*10/ Configuration Data / Encryption Data / Delivery Tree List | ||
| USB Device Mode | USB Video Class: Version 1.0 USB Audio Class: Version 1.0 | ||
| WEB Hybrid Mode | USB Audio Class 1.0 | ||
| Network Protocol | TCP/IPv4, TCP/IPv6*11, UDP/IPv4, UDP/IPv6*11, DHCP, DNS, HTTP, HTTPS, TELNET, NTP | ||
| Network Functions | Packet resending (ARQ), Forward Error Correction (FEC), Adaptive Rate Control (ARC), Reorder, Packet Shaping, Arbitrary Port Setting, NAT Compatibility, Encryption, IP Precedence/DiffServ Support | ||
| External Control | Via Web Browser, Control by HTTP CGI, TELNET, RS-232C | ||
| Connection Modes | IP mode, NAT Traversal mode, IP / NAT Traversal mode | ||
| Dimensions (width x depth x height) | Approx. 320 mm x approx. 230 mm x approx. 61 mm (Excluding projecting parts) | ||
| Weight | Approx. 2.0 kg (approx. 4.4 lb) | ||
| Power Input | AC 100-240 V, -1.4 A, 50/60 Hz | ||
| Power Consumption | Maximum: approx. 43 W, Standby: 0.6 W | ||
| DC Power Input | DC 24 V, 2.5 A | ||
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||
| Operating Humidity | 10 % to 90 % (non-condensing) | ||
| Language | English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Russian, Chinese, Arabic | ||
