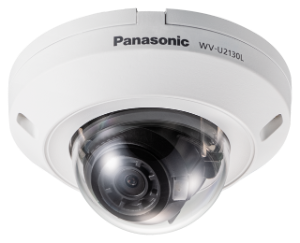

Camera Panasonic WV-U2130L

  • SKUWV-U2130L
  • BrandsIpro
  • Originschina
  • Price:contact
  • Status:Available Stock

Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.

In addition, Panasonic also has a factory in Japan that specializes in the production of surveillance camera equipment to serve the needs of domestic market & export limited when required. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to customers.

Panasonic WV-U2130L Camera is a product of Panasonic brand, distributed genuine by Phuc Binh Company, with sophisticated design combined with outstanding features, promises to bring a clear image experience, suitable for installation in locations such as shops, supermarkets, offices, factories, hospitals, families, etc.

•  Full HD 1080p , support up to 30fps
•  Fixed lens
• iA (Smart Auto)
• Anti-backlit up to  120dB
• Color image display ( 0.006 to 0.1 lx )
• H.265 intelligent compression standard
• Display in corridor view mode (rotate image to show 90 or 270 degrees)

Image SensorApprox. 1/3 type CMOS image sensor
Minimum IlluminationColor: 0.1 lx, BW: 0.04 lx
(50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx
(50IRE, F2.0, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.006 lx, BW: 0.0025 lx
(50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White BalanceATW1/ ATW2/ AWC
Maximum shutter[30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent AutoOn/ Off
Super DynamicOn/ Off, The level can be set in the range of 0 to 31.
Dynamic RangeMax. 120 dB (Super Dynamic: On, Level: 31)
Adaptive Black StretchThe level can be set in the range of 0 to 255.
Back light compensation/ High light compensationBLC (Back light compensation)/ HLC (High light compensation)/ Off
The level can be set in the range of 0 to 31.
(only when Super dynamic/ Intelligent Auto : Off)
Fog compensationOn/ Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC)The level can be set in the range of 0 to 11.
Color/BW (ICR)Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED LightHigh/ Middl / Low/ Off, Maximum irradiation distance: 30 m {Approx. 100 ft}
Digital Noise ReductionThe level can be set in the range of 0 to 255.
Video Motion Detection (VMD)On/ Off, 4 areas available
Scene Change Detection (SCD)On/ Off, 1 area available
Privacy ZoneOn/ Off, Up to 8 zones available
VIQSOn/ Off, Up to 8 zones available
Image rotation0° (Off)/ 90°/ 180° (Upside-down)/ 270°
CameraTitle (OSD)On/ Off, Up to 20 characters (alphanumeric characters, marks)
Focal length3.2 mm{1/8 inches}
Optical zoom1x
Extra zoom1.0x – 1.5x (when resolution is 1280×720)
Digital (electronic) zoomChoose from 3 levels of x1, x2, x4
Angular Field of View[16 : 9 mode] Horizontal : 100°
Vertical : 54°
[4 : 3 mode] Horizontal : 81°
Vertical : 60°
Maximum Aperture Ratio1 : 2.0
Focusing Range1 m {39-3/8 inches} – ∞
Adjusting Angle
Adjusting AngleHorizontal (PAN) angle: -175°– +175°
Vertical (TILT) angle: -30°– +80°
Azimuth (YAW) angle: ±100°
Browser GUI
Camera ControlBrightness
GUI/ Setup Menu LanguageEnglish, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network IF10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265– Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
– Transmission Type: Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG– Image Quality: 10 steps
Smart Coding– GOP(Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On(Mid.)/ On(Low)/ Off
– AUTO VIQS: On/ Off
Supported Protocol– IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous UsersUp to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)– H.265 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
– Compatible microSDXC/microSDHC Memory Card: microSD speed class6 or higher
Panasonic 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card
Mobile Terminal CompatibilityiPad, iPhone, AndroidTM terminals
ONVIF ProfileG/T
Alarm SourceVMD alarm, SCD alarm, Command alarm
Alarm ActionsSDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output
SafetyUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMCFCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power ConsumptionPoE (IEEE802.3af compliant) Device :
DC48 V 100 mA, Approx. 4.8 W (Class 2 device)
Ambient Operating Temperature-10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity10 to 90 % (no condensation)
Dimensionsø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}Dome radius 30.5 mm {1-3/16 inches}
Mass (approx.)250g {0.55 lbs}
FinishMain body: Aluminum die cast/ Polycarbonate resin, i-PRO white
Dome section: Polycarbonate resin, Clear
