Camera Panasonic WV-U2132L

  • SKUWV-U2132L
  • BrandsIpro
  • Originschina
  • Price:contact
  • Status:Available Stock

Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.
In addition, Panasonic also has a factory in Japan that specializes in the production of surveillance camera equipment to serve the needs of domestic market & export limited when required. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to customers.

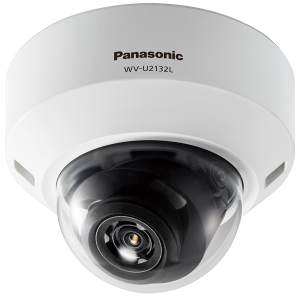

Camera Panasonic WV-U2132L is a product of Panasonic brand, distributed genuine by Phuc Binh Company, with sophisticated design combined with outstanding features, promises to bring a clear image experience, suitable for installation in locations such as shops, supermarkets, offices, factories, hospitals, families, etc.

• Full HD 1080p 30fps
• Built-in 2.5x zoom motor, autofocus
• iA (Smart Auto)
• Backlit up to 120dB
• Color image display (0.006 to 0.1 lx)
• Smart compression standard H .265
• Display in corridor view mode (rotate the image to show 90 or 270 degrees)

Image SensorApprox. 1/3 type CMOS image sensor
Minimum IlluminationColor : 0.1 lx, BW : 0.04 lx
(50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11)
BW : 0 lx
(50IRE, F2.0, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
Color : 0.006 lx, BW : 0.0025 lx
(50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11)
White BalanceATW1/ ATW2/ AWC
Maximum shutter[30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent AutoOn/ Off
Super DynamicOn/ Off, the level can be set in the range of 0 to 31.
Dynamic RangeMax.120 dB (Super Dynamic : On, Level: 31)
Back light compensation / High light compensationBLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto : Off)
Fog compensationOn/ Off The level can be set in the range of 0 to 8. (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC)The level can be set in the range of 0 to 11.
Color/BW (ICR)Off / On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED LightHigh/ Middle/ Low/ Off, Maximum irradiation distance : 30 m {Approx. 100 ft}
Digital Noise ReductionThe level can be set in the range of 0 to 255.
Video Motion Detection (VMD)On / Off, 4 areas available
Privacy ZoneOn / Off (up to 8 zones available)
Image rotation0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD)On / Off Up to 20 characters (alphanumeric characters, marks)
Focal length2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical zoom2.5x (Motorized zoom / Motorized focus)
Extra optical zoom2.5x – 3.8x (when resolution is 1280×720)
Digital (electronic) zoomChoose from 3 levels of x1, x2, x4
Angular Field of View[16 : 9 mode] Horizontal : 43° (TELE) – 100° (WIDE)
Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode] Horizontal : 36° (TELE) – 83° (WIDE)
Vertical : 27° (TELE) – 62° (WIDE)
Maximum Aperture Ratio1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range1 m {39-3/8 inches} – ∞
Adjusting Angle
Adjusting AngleHorizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 °
Azimuth (YAW) angle: ±100°
Browser GUI
Camera ControlBrightness
GUI /Setup Menu LanguageEnglish, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network IF10Base-T / 100Base-TX, RJ45 connector
Resolution H.265[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast
JPEGImage Quality: 10 steps
Smart CodingGOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
Supported ProtocolIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous UsersUp to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)H.265 recording:
Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/
Backup upon network failure
Compatible microSDXC/microSDHC Memory Card:
Panasonic 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card
Mobile Terminal CompatibilityiPad, iPhone, Android terminals
Alarm SourceVMD alarm, SCD alarm, Command alarm
Alarm ActionsSDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser,
Panasonic alarm protocol output
SafetyUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMCFCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power ConsumptionPoE (IEEE802.3af compliant) Device : DC48 V 120 mA, Approx. 5.8 W (Class 2 device)
Ambient Operating Temperature-10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity10 to 90 % (no condensation)
Dimensionsø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches(H)}
Dome radius 40 mm {1-9/16 inches}
Mass (approx.)Approx. 350 g {0.77 lbs}
FinishMain body : ABS resin, i-PRO white
Dome cover : acrylic resin, Clear
