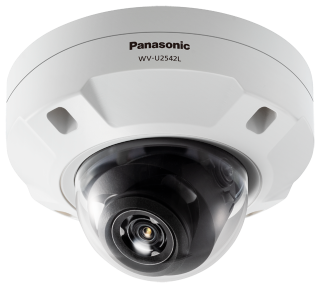

Camera Panasonic WV-U2542L

  • SKUWV-U2542L
  • Brandspanasonic
  • OriginsJapan
  • Price:contact
  • Status:Available Stock

Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.

In addition, Panasonic also has a factory in Japan that specializes in the production of surveillance camera equipment to serve the needs of domestic market & export limited when required. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to customers.

Panasonic WV-U2542L Camera is a product of Panasonic brand, distributed genuine by Phuc Binh Company, with sophisticated design combined with outstanding features, promises to bring a clear image experience, suitable for installation in locations such as shops, supermarkets, offices, factories, hospitals, families, etc.

• 4MP resolution, support up to 30fps
• Built-in 2.5x zoom motor, autofocus
• iA (Smart Auto)
• Anti-backlight up to 102dB
• Display color images (0.019 to 0.3 lx)
• H.265 intelligent compression standard
• Display according to the corridor observation mode (rotate the image displayed 90 or 270 degrees)



Indoor / OutdoorOutdoor
Image sensor1/2.7 CMOS
Min. Illumination Color (lx)0.3
Min. Illumination B/W (lx)0.12 / 0 (w/IR-LED)
Maximum Resolution4MP (2,560 x 1,440)
Maximum FPS30
Super DynamicYes
Image compensationBack light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
ABF(Auto back focus)/Auto Focus/Focus AssistAuto Focus
Image Stabilizer
Corridor ModeYes
Privacy Zone8
iA (Intelligent Auto)Yes
Intelligent VMD (i-VMD)
Focal lengthf=2.9-7.3 mm {1/8 – 9/32 inches}, F2.0 Motorized
Zoom ratio2.5x (Motorized zoom / Motorized focus)
Angular field of view (16:9)H: 43-100 deg. V: 24-56 deg.
Angular field of view (4:3)
Panning Range
Tilting Range
Network IF10Base-T, 100Base-TX, RJ45 connector
Video CodecH.265, JPEG
Transmission mode (H.265/H.264)Constant bit rate, Variable bit rate, Frame rate, Best effort
Smart CodingYes
Audio Support
Built-in microphone
Microphone/Line Input
Audio Output
SD memory Card SlotmicroSDXC
External I/O Terminals
Ambient Operating Humidity10-100
Vandal ResistantIK10 (IEC62262)
Water and Dust ResistanceIP66 (IEC60529), Type 4X(UL50E), NEMA 4X
ClearSight Coating / Rain Wash Coating
Dehumidification device
Temperature (degree, Celsius)MAX50
Temperature (degree, Fahrenheit)MAX122
Power SourcePoE
ONVIF ProfileG, T
SafetyUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMCFCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power ConsumptionPoE (IEEE802.3af compliant) Device: DC48 V 150 mA, Approx. 7.2 W (Class 0 device)
Ambient Operating Temperature-30 °C to +50 °C (-22 °F to +122 °F)
{Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
Ambient Operating Humidity10 to 100 % (no condensation)
Water and Dust ResistanceIP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock ResistanceIK10 (IEC 62262)
Dimensionsø154 mm (W) x 103 mm (H) {ø6-1/16 inches × 4-1/16 inches (H)}
Dome radius 42 mm {1-21/32 inches}
Mass (approx.)1.0 kg {2.21 lbs.}
FinishMain body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Dome cover: Polycarbonate resin, Clear
