Camera UNV IPC2123LB-AF40KM-G

  • SKUIPC2123LB-AF40KM-G
  • Brandsuniview
  • Originschina
  • Price:Contact
  • Status:Available Stock
  • Guarantee:12 months

Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.

Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

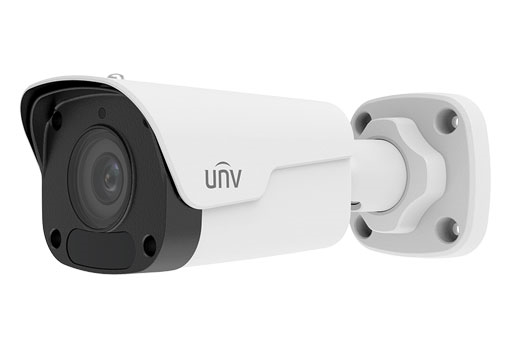

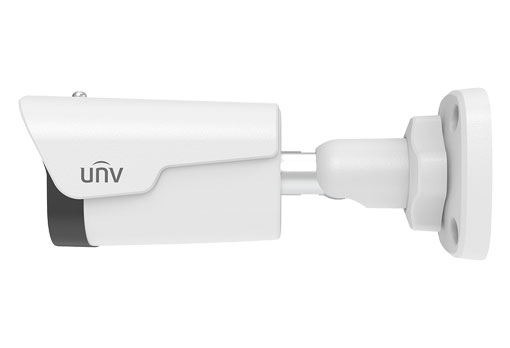

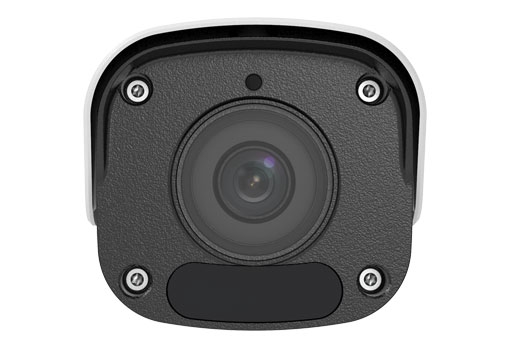

3MP HD Fixed IR Bullet Network Camera
• High quality image with 3MP, 1/2.7″CMOS sensor
• 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

IPC2123LB-AF40KM-G

Camera

Sensor

1/2.7″, 3.0 megapixel, progressive scan, CMOS

Lens

4.0mm@F2.0

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.0

60.0

24.0

12.0

6.0

Angle of view (H)

91.2°

Angle of View (V)

47.9°

Angle of View (O)

95.9°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

9:16 Corridor Mode

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP , UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP

Compatible Integration

ONVIF (Profile S, Profile T ,Profile G), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network

10/100M Base-TX Ethernet

Built-in Mic

Supported

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 7.0W

Dimensions (Ø x H)

165mm × 63mm × 62mm (6.6” × 2.5” × 2.5”)

Net Weight

0.39kg (0.86lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Ingress Protection

IP67

Reset Button

N/A
