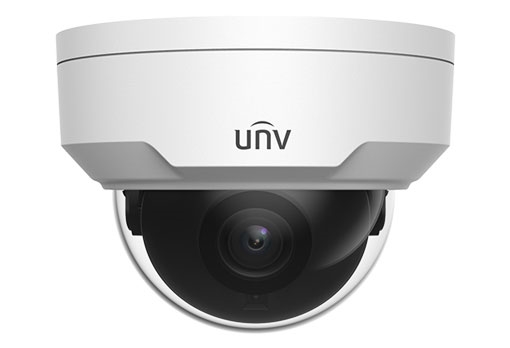

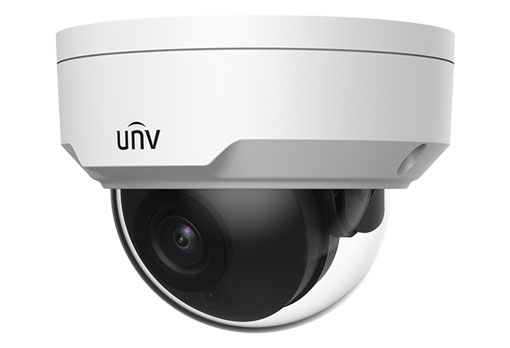

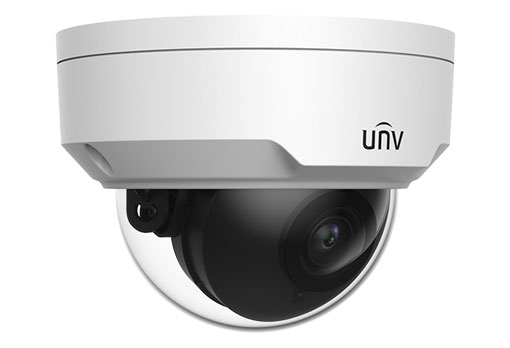

Camera UNV IPC324LE-DSF40K-G
- SKUIPC324LE-DSF40K-G
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis
IPC324LE-DSF40K-G | |||||||
Camera | |||||||
Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||||
Lens | 4.0mm@F1.6 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||
Angle of view (H) | 83.7° | ||||||
Angle of View (V) | 44.9° | ||||||
Angle of View (O) | 89.2° | ||||||
Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.003Lux ( F1.6, AGC ON) | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
S/N | >56dB | ||||||
IR Range | Up to 30m (98ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
9:16 Corridor Mode | Supported | ||||||
OSD | Up to 4 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Supported | ||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | N/A | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation | ||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256 GB | ||||||
Network Storage | ANR,NAS(NFS) | ||||||
Interface | |||||||
Network | 10/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max5.5W | |||||||
Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | ||||||
Net Weight | 0.35kg (0.77lb) | ||||||
Material | Metal + Plastic | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 4KV | ||||||
Ingress Protection | IP67 | ||||||
Vandal Resistant | IK10 | ||||||
Reset Button | N/A | ||||||
