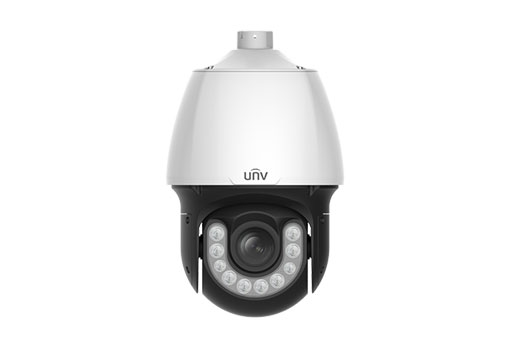

Camera UNV IPC6252SFW-X22U

SKUIPC6252SFW-X22U
Brandsuniview
Originschina
Price:contact
Status:Available Stock
Guarantee:12 months

2MP 22x Starlight Network Full Spectrum PTZ Dome Camera

Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.

Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

2MP 22x Starlight Network Full Spectrum PTZ Dome Camera

Starlight illumination
Full spectrum light with both white and infrared LED design
1/1.9″ progressive scan CMOS
Up to 1920 × 1080 resolution, 30fps
22x optical zoom (6.5~143mm)
Smart IR, up to 150m IR distance
Alarm I/O, Audio I/O, ONVIF， H.265
IP66, –40°C ~ +70°C
AC24V, DC24V, 11~47W

Camera
Sensor	1/1.9″, 2 megapixel, progressive scan, CMOS
Lens	6.5 ~ 143 mm (22x optical zoom)
Angle of View (H)	70° (wide) ~ 3.76° (tele)
Iris	Auto/Manual; F1.5 ~ F3.4
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum Illumination	Colour: 0.001 lux (F1.5, AGC ON)0 Lux with IR on
S/N	>52 dB
WDR	120 dB
Day/Night	IR-cut filter with auto switch (ICR)
Video
Max. Resolution	1920 × 1080
Video Compression	H.265, H.264, MJPEG
Frame Rate	1080P (1920×1080):Max.60 fps; 720P (1280×720):Max.60 fps; D1 (720×576):Max.25 fps
Video Streaming	Triple
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
Digital Zoom	Supported
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration	ONVIF, API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
Pan Speed	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
Tilt Speed	Preset speed: 240°/s
Number of Preset	256
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Drag-to-Zoom	Supported
Interface
Audio I/O	Audio cable
	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2 / 1
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	24 V AC (Default), 24 V DC
Power	Power consumption:11 ~47W
Dimensions (Ø x H)	Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Weight	5.4 kg (11.9 lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
