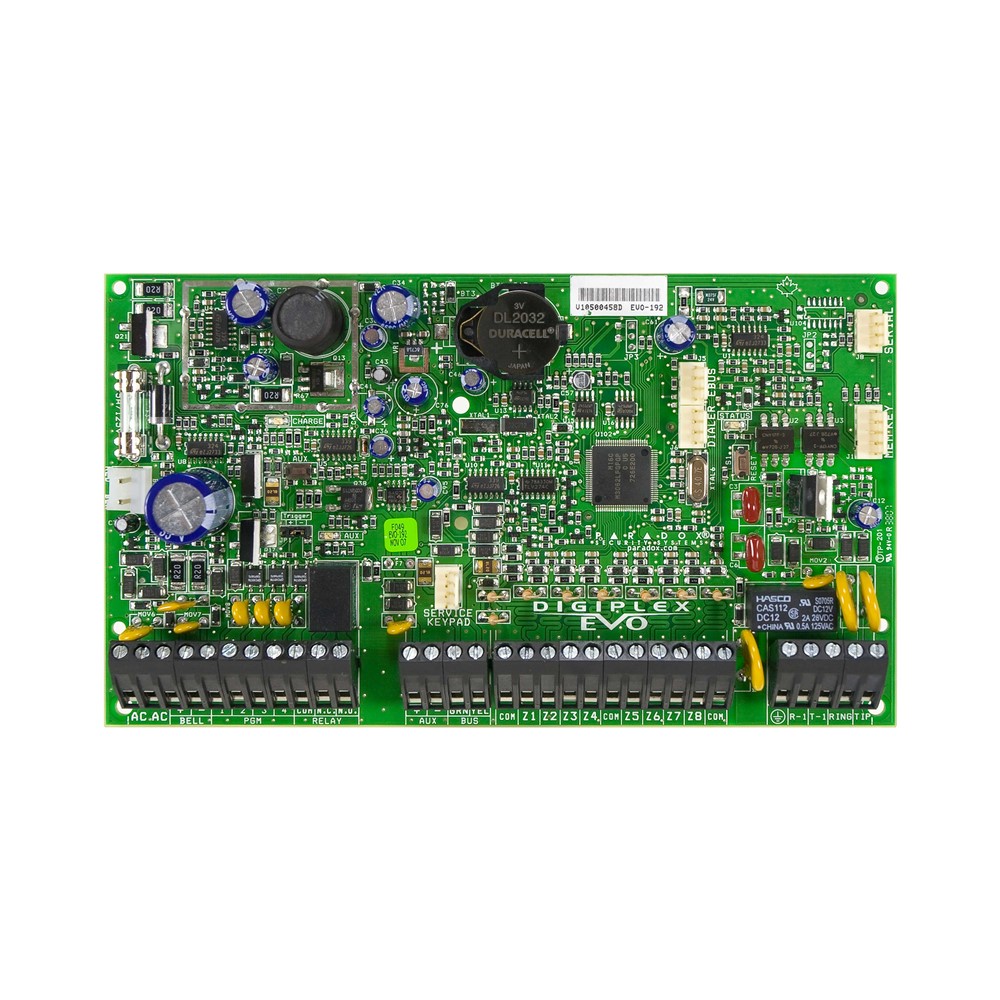

The Digiplex EVO (EVO192) is a security and access control system with 8 on-board zone inputs (16 with zone doubling) that is expandable to 48 or 192 zones via the 4-wire combus. The EVO control panel features up to 999 users, 8 partitions, 32 doors and can support up to 254 modules in any combination.
PHUCBINH GROUP distributes genuine Paradox products.
8 on-board zones (16 w/ zone doubling)
- Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
- In-field firmware upgrade via 307USB, Babyware and WinLoad
- Selectable input resistors for EOL and Tamper
- Compatible with NEware V4.0 or higher
- Automatic Daylight Savings Time feature
- PGM1 can be used as a 2-wire smoke input
- Program remote controls using the master or installer codes
- Built-in real-time clock backup battery
- 7A switching power supply
- 1 supervised bell output, auxiliary output and telephone line
- Push button software reset (reset to default values and restart)
- Push button to activate or deactivate the Auxiliary output
- The EVO series share the same programming for easy panel substitution
- EN 50131 grade 3
Maximum Zones | 192 |
On-board Zones | 8 (16 with ATZ) |
Partitions | 8 |
User Codes | 999 |
Multibus | YES |
Stay Arming | YES |
Panel In-field Firmware Upgradable | YES |
Access Control (Doors) | 32 |
Access Levels / Schedules | 16 / 32 |
Events Buffered | 3584 PGMs 32 (5 on-board) |
PGM +/- Trigger | YES |
Virtual Zones | 32 |
Expansion Modules | 254 |
Supports IP / GPRS / GSM Communication (PCS Series) | YES |
Supports VDMP3 Plug-in Voice Module | YES |
Supports IP150 Internet Module | YES |
Software | NEware, BabyWare |
Listen-in Capabilities | YES |
