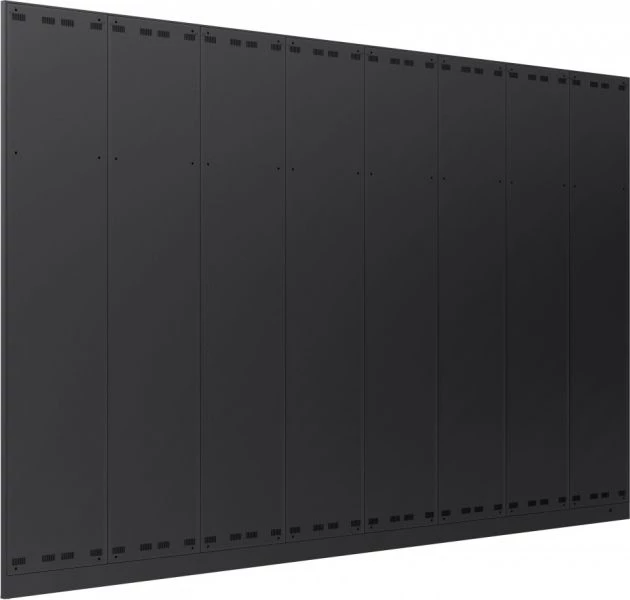

LD216-251 216” LED Display

  • SKULD216-251
  • Brandsviewsonic
  • Originschina
  • Price:Contact
  • Status:Available Stock

The ViewSonic® LD216-251 is an innovative 216” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 3.5 cm thickness & bezel-free seamless design, the LD216-251 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LD216-251 enables IT personnel to remotely setup and configure.

216” All-in-One Direct View LED Display

  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

Screen Size: 216”
Display Area (mm): 4800 (H) x 2700(V)
Native Resolution: 1920×1080
Panel Technology: Direct view LED
Bonding Wire: Gold
Pixel Pitch (mm): 2.50
Refresh Rate: 4440Hz
Brightness (max.): 600 nits (8 levels adjustable)
Contrast Ratio (typ.): 6000:1
Orientation: Landscape
Viewing Angles (typ.): H = 160, V = 160
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 32GB (26GB available storage)
Resolution Support: HDMI(640 x 480) to 1080p(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 31K-94kHz
Vertical Scan Rate: 56-85Hz

HDMI: x2(HDMI 1.4, HDCP 1.4)
USB Type A: x3(USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet): x1
Wi-Fi Input: 2.4G/5G Hz

HDMI out: x1(HDMI 1.4, HDCP 1.4)
Speaker: 5W*2
Audio out (3.5mm): x1
USB Type A (Power): Shared with USB input(5V/1A x1, 5V/0.5A x2)

RJ45 (LAN control): x1(shared with internet)
USB Type A (Services): x1(shared with USB A input)
USB Type B (Debug): x1
RS232 (DB 9-pin female): x1
IR Receiver: x1

Power Supply Voltage: 100-120V/30A~ 50/60Hz220-240V/15A~ 50Hz(vary by country)
Power Consumption: 3430W (typ), 4900W (max)< 0.5W (Sleep), < 0W (Off)
Operating Temperature: 0~40℃
LED Module Quantity: 128
Ingress Protection Rating: IP30
Net Weight: 750 lbs(340kg)
Gross Weight: 992 lbs(450kg)
Screen Dimensions (WxHxD): 189.8×110.9×1.4 inches(4820.95×2818.45x 35mm)
Screen Dimensions (WxHxD) with wall mount: 189.8×110.9×2.2 inches(4820.95×2818.45x 56mm)
Packing Dimensions: 109.4×33.5×40.2 inches(2780x850x1020mm)

Power Cord: x1
USB Cable (A-B): x1
Remote Control: x1
QSG: x1
Wall Mount: x1
Spare Parts: LED PCB Unit x7
Maintenance Tool: LD-MK-001 x1

Maintenance Tool: LD-MK-001
ViewBoard Cast Button(USB-C): VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
