LS860WU - Short Throw Laser Installation Projector

SKULS860WU
Brandsviewsonic
Originschina
Price:Contact
Status:Available Stock

Contact

ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centers, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.

5,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

5,000 ANSI Lumens offering bright images in any environment
2nd generation Laser Phosphor technology with 20,000 hours lifespan
0.81-0.89 short throw ratio free of large space consumption
Wide H/V lens shift enabling flexible installation
Creativity realized by 360° projection & Portrait mode
Cost-effective compact size and built-in HDBaseT

- Specification
  Projection System: 0.48″ WUXGA
  Native Resolution: 1920×1200
  Brightness: 5000 (ANSI Lumens)
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor system
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lamp Watt: Nichia 67W x2
  Lens: F=1.83-1.86, f=8.6-9.4mm
  Projection Offset: 0%
  Throw Ratio: 0.81-0.89
  Optical Zoom: 1.1X
  Digital Zoom: 0.8x-2.0x
  Image Size: 60″-200″
  Throw Distance: 1.04-3.83m
  (100″@1.74m)
  Keystone: H:+/-40° , V:+/-40°
  Lens Shift V. Range: +50%, -50%
  Lens Shift H. Range: +23%, -23%
  Audible Noise (Normal): 35dB
  Audible Noise (Eco): 28dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility: NTSC, PAL, SECAM
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 23-120Hz

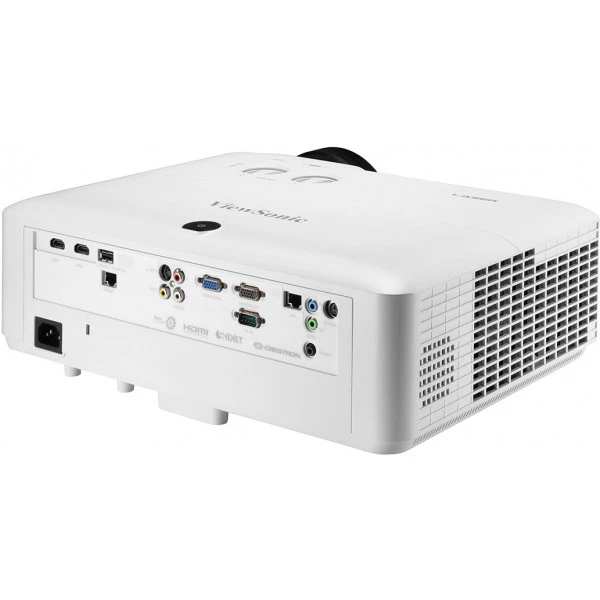

- Input
  Computer in (share with component): 1
  Composite: 1
  S-Video: 1
  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm): 1
  Audio-in (RCA R/L): 1
  3D VESA (Sync): 1
  HDBaseT: 1
- Output
  Monitor out: 1
  Audio-out (3.5mm): 1
  Speaker: 10W x2
  USB Type A (Power): 1 (5V/1.5A)
  12V Trigger (3.5mm): 1
- Control
  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)
- Others
  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 430W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 6.6kg
  Gross Weight: 9.1kg
  Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
  Packing Dimensions: 515x490x276mm
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
- Standard Accessory
  Power Cord: 1
  VGA Cable: 1

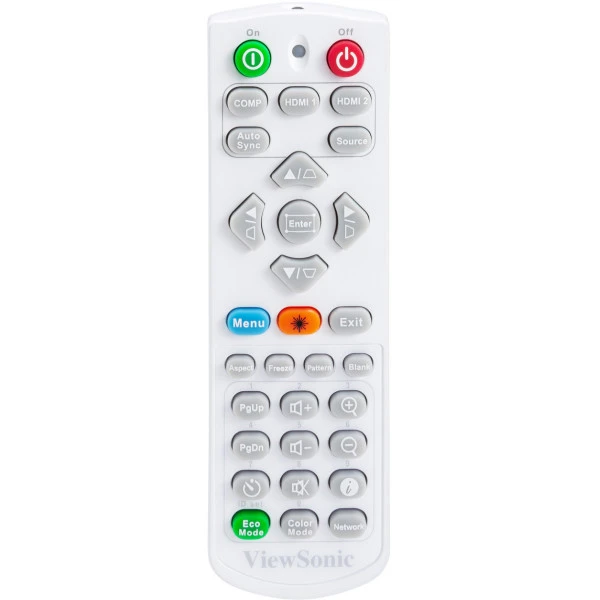

  Remote Control: 1
  (w/ laser pointer)
  QSG: Yes
  Warranty Card: Yes (CN Only)
- Optional Accessory
  Wall/Ceiling Mount: PJ-WMK-007
