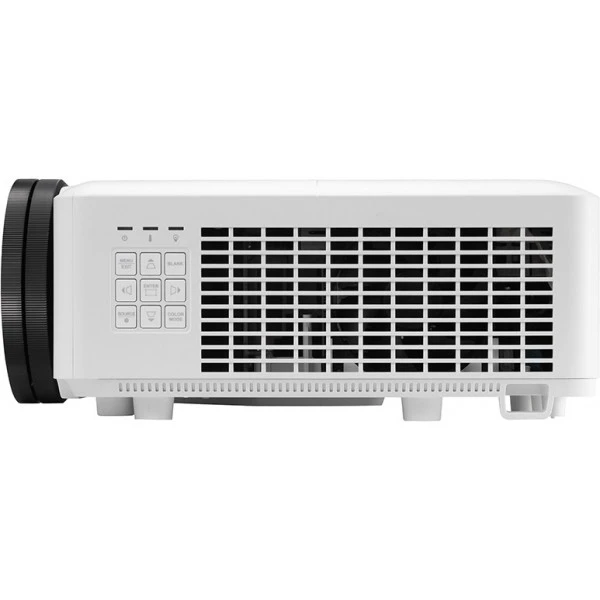

LS860WU - Short Throw Laser Installation Projector

  • SKULS860WU
  • Brandsviewsonic
  • Originschina
  • Price:Contact
  • Status:Available Stock

ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centers, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.

5,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

  • 5,000 ANSI Lumens offering bright images in any environment
  • 2nd generation Laser Phosphor technology with 20,000 hours lifespan
  • 0.81-0.89 short throw ratio free of large space consumption
  • Wide H/V lens shift enabling flexible installation
  • Creativity realized by 360° projection & Portrait mode
  • Cost-effective compact size and built-in HDBaseT
    • Specification
      Projection System: 0.48″ WUXGA
      Native Resolution: 1920×1200
      Brightness: 5000 (ANSI Lumens)
      Contrast Ratio: 3000000:1
      Display Color: 1.07 Billion Colors
      Light Source Type: Laser Phosphor system
      Light Source Life (hours) with Normal Mode: 20000
      Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
      Lamp Watt: Nichia 67W x2
      Lens: F=1.83-1.86, f=8.6-9.4mm
      Projection Offset: 0%
      Throw Ratio: 0.81-0.89
      Optical Zoom: 1.1X
      Digital Zoom: 0.8x-2.0x
      Image Size: 60″-200″
      Throw Distance: 1.04-3.83m
      Keystone: H:+/-40° , V:+/-40°
      Lens Shift V. Range: +50%, -50%
      Lens Shift H. Range: +23%, -23%
      Audible Noise (Normal): 35dB
      Audible Noise (Eco): 28dB
      Input Lag: 16ms
      Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
      HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
      Video Compatibility: NTSC, PAL, SECAM
      Horizontal Frequency: 15K-102KHz
      Vertical Scan Rate: 23-120Hz

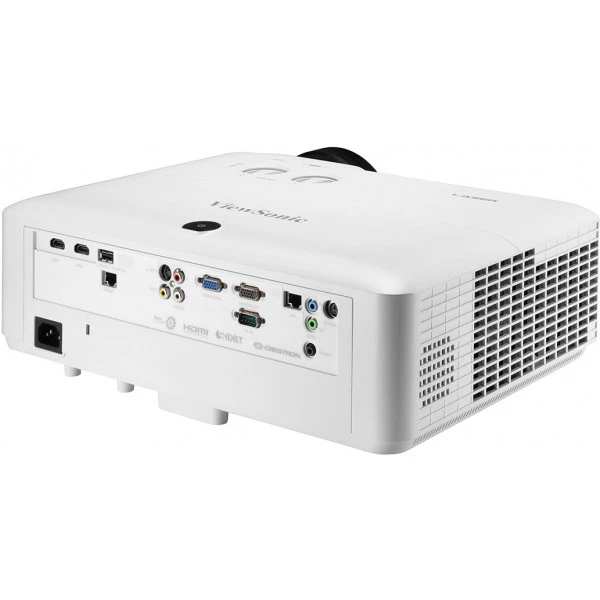

    • Input
      Computer in (share with component): 1
      Composite: 1
      S-Video: 1
      HDMI: 2
      (HDMI 1.4/ HDCP 1.4)
      Audio-in (3.5mm): 1
      Audio-in (RCA R/L): 1
      3D VESA (Sync): 1
      HDBaseT: 1
    • Output
      Monitor out: 1
      Audio-out (3.5mm): 1
      Speaker: 10W x2
      USB Type A (Power): 1 (5V/1.5A)
      12V Trigger (3.5mm): 1
