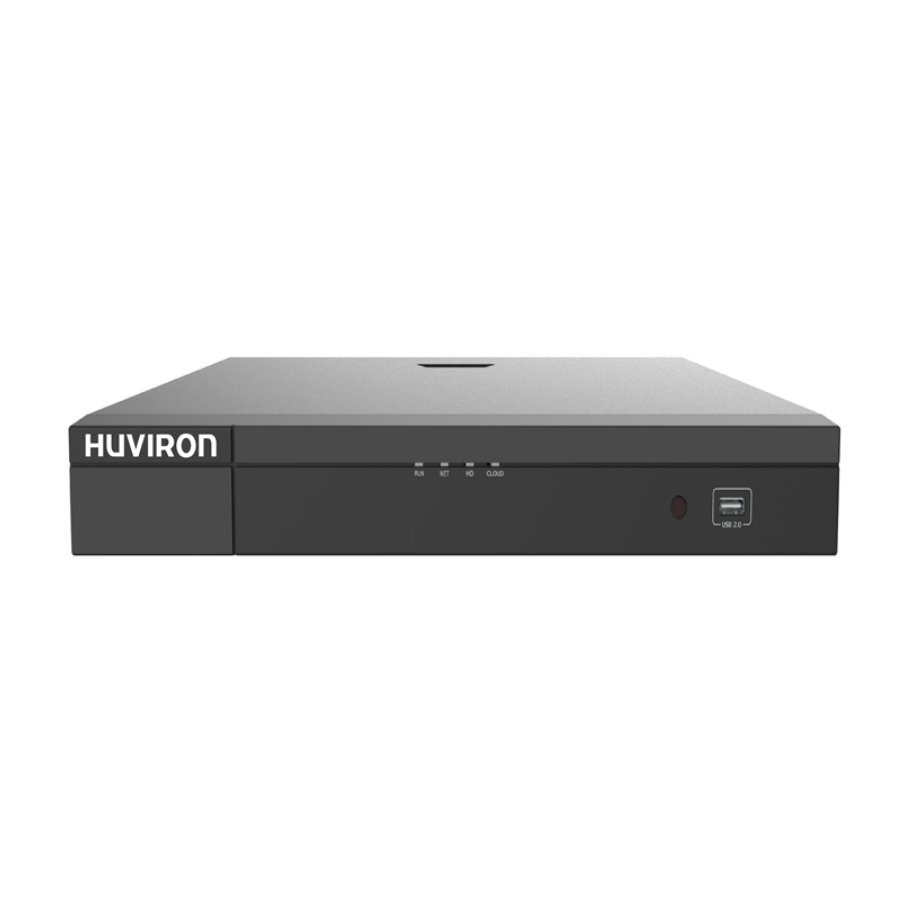

Network video recorder HU-RN2232M

SKUHU-RN2232M
Brandshuviron
OriginsAsia
Price:Contact
Status:Available Stock
Guarantee:24 months

Huviron is a Korean origin brand, providing security products, solutions and CCTV systems. Dome camera F-ND221S/AIP is a product of Huviron brand, with a sophisticated design combined with outstanding features, suitable for installation in locations such as stores, supermarkets, offices factories, airports, hospitals, hotels…

. 32 channels
. Bandwidth: 160Mbps
. Image compression standard: Ultra 265, H.265, H.264
. Video recording with resolution: 8MP/5MP/4MP/3MP/1080p/960p/720p
. Live View / Playback: 8MP/5MP/4MP/3MP/1080p/960p/720p
. Network connection: Support 1 port 10/100M- Ethernet
. HDMI output support: 4K(3840×2160)/1920x1080p

	Model	HU-RN2232M
Video/Audio Input	IP video input	32ch
Video/Audio Input	Two-way Audio Input	1-ch, RCA
Video/Audio Output	HDMI/VGA output	HDMI: 4K (3840×2160)/1920x1080p/1600x12001280x1024/1280×720/1024×768 VGA: 1920x1080p/1280×1024/1280×720/1024×768
	Two-wayAudio output	1ch, RCA
	Recording resolution	8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
	Synchronous playback	32ch
	Corridor mode screen	3/4/5/7/9/10/12/16/32
Network	Network interface	2RJ4510/100/1000M-Ethernet
	Incoming Bandwidth	160Mbps
	Output Bandwidth	64Mbps
	Remote users	128
	Client	HU-Viewer, HU-VMS
Decoding	Video compression	Ultra 265/H.265/H.264
	Live view/Playback	8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
	Capability	2CHx 4K@30fps, 3CHx5MP@30fps, 4CH x 4MP@30fps, 5CHx3MP@30fps, 8CHx1080p@30fps, 16CHx720p@30fps, 32xD1
Storage	Interface Type	2SATA
Storage	Capacity	Up to6TB for each disk
Smart	VCA Detection	Face detection, Intrusion detection, Cross line detection, Audiodetection, Defocusdetection, Scenechangedetection, Auto tracking
	VCA Search	Face search,Behavior search
	StatisticalAnalysis	Peoplecounting
External Interface	USB interface	2USB 2.0, 1 USB 3.0
General	Power Supply	12VDC, Max 15W( without HDD )
	Working enviromnet	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
	Dimension(WxDxH)	380mm × 315mm×53mm(15.0″ × 12.4″ ×1.9″ )
	Weight(without HDD)	2.48kg
