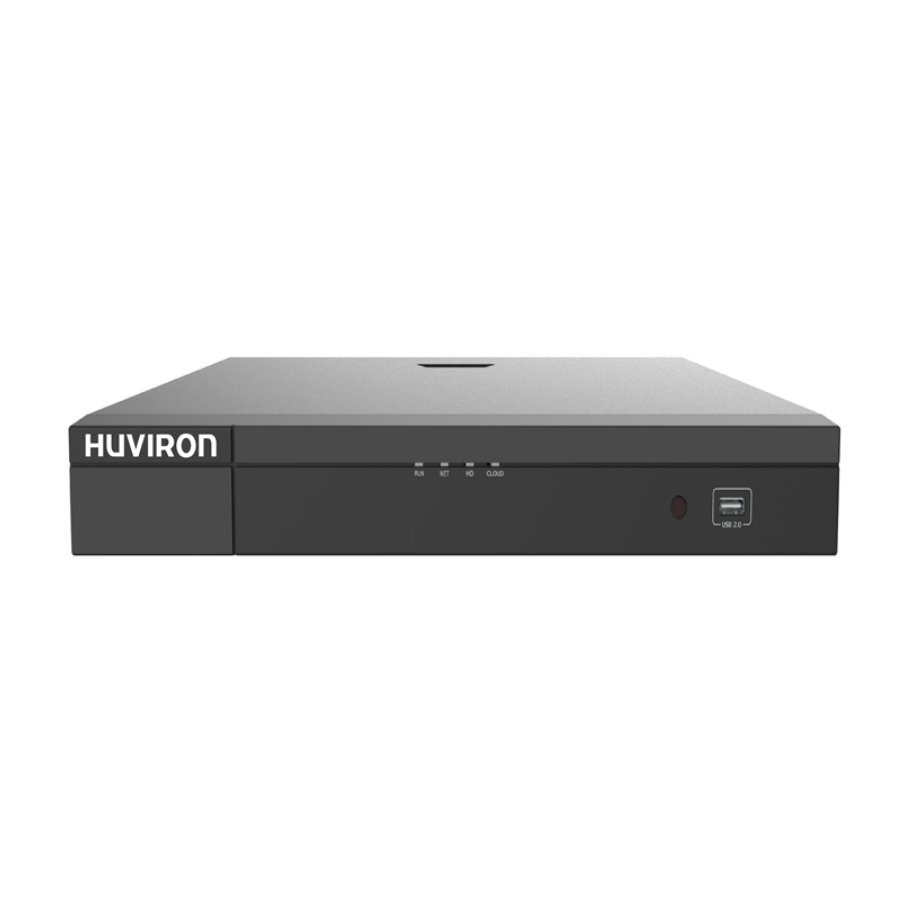

Network video recorder HU-RN2232M
- SKUHU-RN2232M
- Brandshuviron
- OriginsAsia
- Price:Contact
- Status:Available Stock
- Guarantee:24 months
Huviron is a Korean origin brand, providing security products, solutions and CCTV systems. Dome camera F-ND221S/AIP is a product of Huviron brand, with a sophisticated design combined with outstanding features, suitable for installation in locations such as stores, supermarkets, offices factories, airports, hospitals, hotels…
. 32 channels
. Bandwidth: 160Mbps
. Image compression standard: Ultra 265, H.265, H.264
. Video recording with resolution: 8MP/5MP/4MP/3MP/1080p/960p/720p
. Live View / Playback: 8MP/5MP/4MP/3MP/1080p/960p/720p
. Network connection: Support 1 port 10/100M- Ethernet
. HDMI output support: 4K(3840×2160)/1920x1080p
| Model | HU-RN2232M | |
| Video/Audio Input | IP video input | 32ch |
| Two-way Audio Input | 1-ch, RCA | |
| Video/Audio Output | HDMI/VGA output | HDMI: 4K (3840×2160)/1920x1080p/1600x12001280x1024/1280×720/1024×768 VGA: 1920x1080p/1280×1024/1280×720/1024×768 |
| Two-wayAudio output | 1ch, RCA | |
| Recording resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF | |
| Synchronous playback | 32ch | |
| Corridor mode screen | 3/4/5/7/9/10/12/16/32 | |
| Network | Network interface | 2RJ4510/100/1000M-Ethernet |
| Incoming Bandwidth | 160Mbps | |
| Output Bandwidth | 64Mbps | |
| Remote users | 128 | |
| Client | HU-Viewer, HU-VMS | |
| Decoding | Video compression | Ultra 265/H.265/H.264 |
| Live view/Playback | 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 2CHx 4K@30fps, 3CHx5MP@30fps, 4CH x 4MP@30fps, 5CHx3MP@30fps, 8CHx1080p@30fps, 16CHx720p@30fps, 32xD1 | |
| Storage | Interface Type | 2SATA |
| Capacity | Up to6TB for each disk | |
| Smart | VCA Detection | Face detection, Intrusion detection, Cross line detection, Audiodetection, Defocusdetection, Scenechangedetection, Auto tracking |
| VCA Search | Face search,Behavior search | |
| StatisticalAnalysis | Peoplecounting | |
| External Interface | USB interface | 2USB 2.0, 1 USB 3.0 |
| General | Power Supply | 12VDC, Max 15W( without HDD ) |
| Working enviromnet | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimension(WxDxH) | 380mm × 315mm×53mm(15.0″ × 12.4″ ×1.9″ ) | |
| Weight(without HDD) | 2.48kg |
