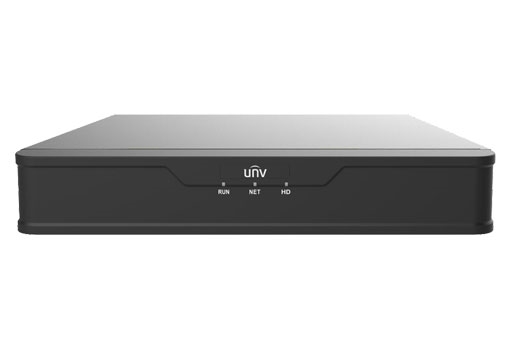

Network video recorder NVR301-04S3

  • SKUNVR301-04S3
  • Brandsuniview
  • Originschina
  • Price:Contact
  • Status:Available Stock
  • Guarantee:12 months

Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.

Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

  • NVR for IP cameras
  • Easy range
  • 4 CH
  • 64 Mbps bandwidth supported
  • Maximum resolution 8 Megapixel
  • Compression Ultra265/H.265/H.264
  • Audio output
  • VGA and HDMI 4K output
  • Corridor mode
  • Mouse
  • Space for 1 HDD up to 6 TB
  • IEEE802.3af/at
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Model

NVR301-04S3

Video/Audio Input

IP Video Input

4-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

48Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, 3.5mm

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

General

Power Supply

12V DC
Power Consumption: ≤5 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 46mm (10.2″×9.4″×1.8 “)

Weight (without HDD)

≤0.98kg (2.16 lb)
