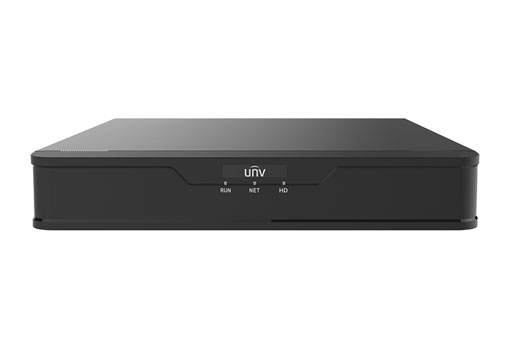

Network video recorder NVR304-16X
- SKUNVR304-16X
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
UNV 16 Channel NVR, Ultra265, H.265, H.264, ONVIF Profile S, Profile G, Profile T, Support 3rd Party Cameras, 4 SATA up to 10TB each, Cloud Upgrade, 2 HDMI, 1 VGA, 3 USB, 1 CH Audio 2 Way, Bandwidth In 384Mbps, Out 384Mbps, Dewarp, RAID 1, RAID 5, ANR, P2P, UPnP, NTP, DHCP, PPPoE, Up to 8MP Recording, Prime Series, DUAL NIC
• Support Ultra 265/H.265/H.264 video formats
• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA.HDMI1 and HDMI2 up to 4K (3840×2160) resolution
• HDMI1, HDMI2, VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Support RAID 1, 5
• 4 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Model | NVR304-16X | |
Video/Audio Input | ||
IP Video Input | 16-ch | 32-ch |
Two-way Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 384Mbps | |
Outgoing Bandwidth | 384Mbps | |
Remote Users | 128 | |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
Video/Audio Output | ||
HDMI/VGA Output | VGA: | |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Synchronous Playback | 16-ch | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
Decoding | ||
Decoding format | Ultra 265, H.265, H.264 | |
Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 | |
Hard Disk | ||
SATA | 4 SATA interfaces | |
Capacity | up to 10TB for each HDD | |
Disk Array | ||
Array Type | RAID 1, 5 | |
External Interface | ||
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
Serial Interface | 1 x RS485, 1 x RS232 | |
USB Interface | Front panel: 2 x USB2.0 | |
Alarm In | 16-ch | |
Alarm Out | 4-ch | |
General | ||
Power Supply | 100~240 VAC | |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4″ × 16.8″× 3.5″) | |
Weight (without HDD) | ≤ 5.7Kg (12.57lb) | |
