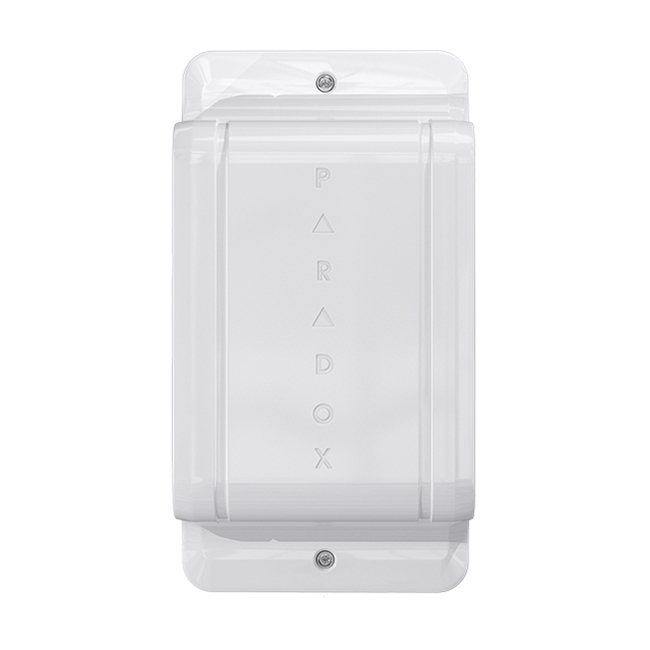

Paradox NV780MX motion detector
- SKUNV780MX
- Brandsparadox
- OriginsCanada
- Price:Contact
- Status:Available Stock
The NV780MX provides a pre-entry protection solution while keeping the perimeter free from movement, designed to protect exterior/interior walls and doors or windows.
NV780M rugged indoor/outdoor detector incorporates two double passive infrared side-by-side detectors (right and left view), independent of each other with separate Active IR Anti-Mask detection for each side. The optics are specially designed to provide multiple narrow beams for excellent detection covering up to 12m (40ft) for each side.
PHUCBINH GROUP distributes genuine Paradox products.
- Dual side active IR anti-masking detection, will detect sprayed liquids and blocking
- Pet immunity capability, up to 40 kg (90 lb)
- 4 dual element sensor arrangement
- 12m range each side
- Combination optics, mirror and Fresnel lens
- Single or dual operation modes
- Optical and digital range adjustments
- Dual LED and buzzer indicators
- IP54
Paradox NV780MX motion detector
Sensor | 4 x dual low noise rectangular elements |
Lens | 2nd gen., flat 2x dual beam, 1.7 in. focal point, narrow beam long-range Fresnel lens |
Processing | Digital APSP / Digital temperature compensation |
Anti-Mask | Dual Active IR left / right with accelerated fast respond processing detecting blocking objects, sprayed materials and degradation |
Startup time | 25 sec, with anti-mask calibration |
Detection speed | 0.2m/sec – 4m/sec (0.6 ft/sec – 13.1 ft/sec) |
Power input | 9 Vdc to 15 Vdc |
Current consumption | Typical / Standby: 37 mA Max: 80 mA |
Coverage | Bi-directional, independent, 2 x 3m to 12m (9.8 ft to 39 ft) at 2.5m height |
PET Immunity | Up to 40 kg (90 lb) – requires min.1.5m (4.9 ft) installation height |
Installation height | 1.5m and above |
Alarm indicator | Red LED flashes for 3 sec., audible buzzer |
Anti-Mask indicator | Orange LED flashes for 6 seconds, repeats every 60 sec. |
Alarm output | 2 Solid State, N.C., 150 mA Dual mode, in Single mode the relays operate together |
Anti-tamper switch | N.C. 28 Vdc, 0.15A |
RF immunity | Complies with EN 50130-4: 10V/m 80 MHz to 2.7 GHz |
Operating temperature | -35°C to +50°C (-31°F to +122°F) |
Humidity | 95% max. |
Dimensions | L8.2 in. x W4.3 in. x D2.7 in. (21 cm x 11 cm x 7 cm) |
Standards | EN 50131-2-2, Security Grade 2, EN 50130-5 Environmental Class IVA |
