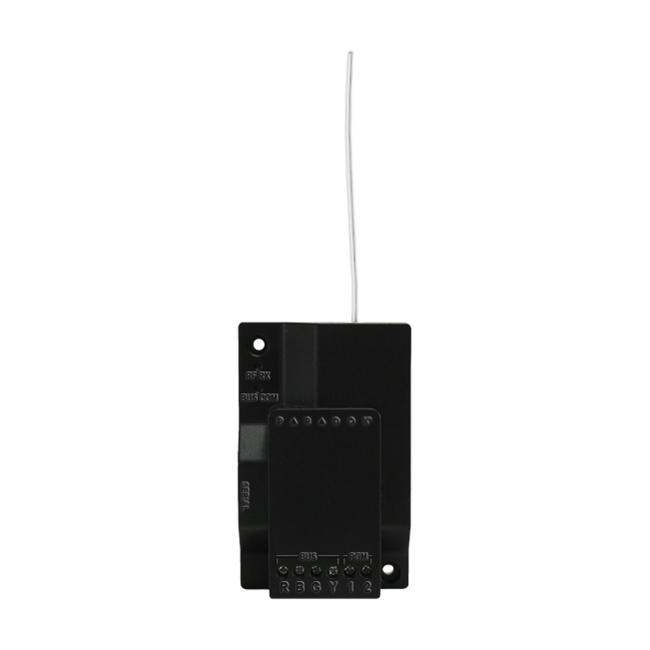

Paradox RX1 Wireless 1-Way Receiver

The Paradox RX Wireless Receiver adds wireless receiving capability to SP Series panels allowing the use of one-way remotes and detection devices with the system.

PHUCBINH GROUP distributes genuine Paradox products.

Compatible with SP Series control panels (V4.54 and higher)
32 wireless zones (SP Series only)
Maximum number of remote controls: 32
Remote control compatibility: REM1, RAC1
Transmitter compatibility: DCT10, DCTXP2, DCT2, PMD1P, PMD75, PMD85, SD738 (SP only)
In-field firmware upgradable via In-Field Firmware Upgrade software
RF jamming supervision
Low battery, tamper, and check-in supervision
Transmitter signal strength display
2 PGM outputs follow buttons 1 and 2 on REM1/RAC1 (also programmable through the panel)

Power Input	Voltage 12 Vdc
Frequency	433 MHz or 868 MHz
Sensitivity	-110 dBm (433 MHz) or -106 dBm (868 MHz)
Current Consumption	25 mA
Dimensions	(no antenna) 5.1 x 8.3 x 2 cm (2 x 3.25 x 0.78 in.)
Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
PGM Outputs	PGM1 and PGM2 – via PGM 13 and 14 of panel
Antenna	Monopole antenna; error correction algorithm
