Panasonic Group supplies products of the group of security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market – the majority.
In addition, Panasonic also has a factory in Japan specializing in the production of surveillance camera equipment to serve the needs of domestic market & export. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bringing confidence to users.

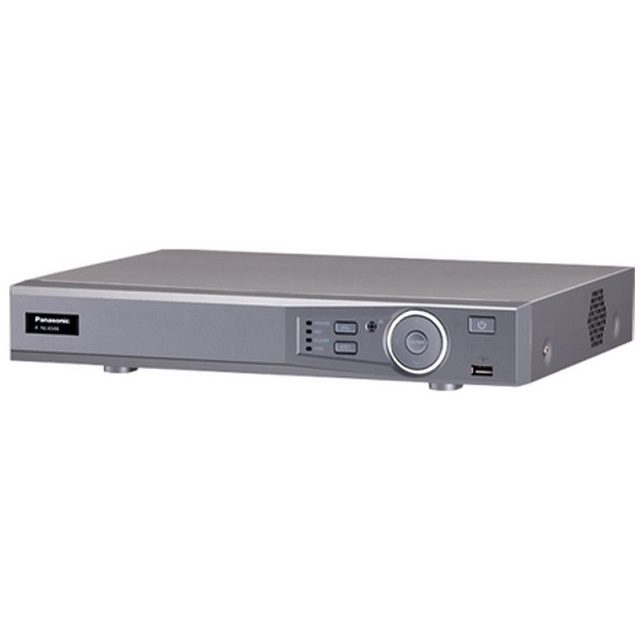

Recorder K-NL404K/G is a product of Panasonic brand, designed elegantly, beautifully, combined with outstanding features.
• Bandwidth up to 80 Mbps input
• resolution up to 5 MP for preview and playback
• Video output and HDMI / VGA
• Playback time 4-channel real-time synchronization, GRID interface
• Supports 1 SATA III port, Supports up to 8TB hard drive, 2 USB2.0
• Supports IPC UPnP, 4 PoE ports
• View over multiple networks: Web viewer, EMS & Mobile-EMS
Model | K-NL404K/G |
Supported Camera | |
| Compatible vendor | Only E-Series camera |
| Supported Image Format | H.265 / H.264 |
| Supported Audio Format | G.711, G.711μ, G.726, PCM |
| Supported Image Resolution | 5 MP, 4 MP, 3 MP, 1080 P, 1.3 MP, 720 P, D1 etc. |
| Compatible vendor | Only E-Series camera |
Video / Audio | |
| IP Camera Input | 4 channels |
| Audio | 1 Channel Input, 1 Channel Output, RCA |
Display | |
| Interface | 1 HDMI (up to 3840×2160), 1 VGA |
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split | 1 / 4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
| Maximum Bandwidth | Total 80 Mbps or less |
| Bit Rate | 16 Kbps – 20 Mbps Per Channel *Suggested to set bit rate for E-Series camera to 2 Mbps or less |
| Record Mode | Manual, Schedule {Regular, MD(Motion Detection), Alarm}, Stop |
| Record Interval | Recording duration : 1 – 120 min (default : 60 min), Pre-record : 1 – 30 sec, Post-record : 10 – 300 sec |
Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm Input | / |
| Relay Output | / |
Playback & Backup | |
| Sync Playback | 1 / 4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuf‑e, Backup Selection, Digital Zoom |
| Backup Mode | USB Device / Network |
Network | |
| Network Interface | 1 RJ45 Port (10/100 Mbps) |
| Ethernet Port | 1 Independent 100 Mbps Ethernet Port |
| PoE | 4 ports (IEEE802.3at/af) (4 Mbps is recommended per channel) Max 25.5 W for single port, 48 W in total |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP*, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP Search *Suggested to synchronize to external NTP server |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android™ |
Storage | |
| Internal HDD | 1 SATA III Port, Up to 8 TB capacity for each HDD |
External Interface | |
| USB | 2 USB Ports (2 USB2.0) |
| RS232 | / |
| RS485 | / |
General | |
| Safety | IEC60950-1, EN60950-1 |
| EMC | EN55032 ClassA, EN55024, EN50130-4, EN55035 |
| Power Supply | DC48 V/1.5 A |
| Ambient Operating Temperature/ Humidity | 0 °C to +45 °C ( 32 °F to 113 °F) / 10 to 90% RH / 86 to 106 kpa |
| Dimension (W × D × H) | 325 mm (W) × 255 mm (D) × 55 mm (H) {12-13/16 inches (W) × 10-1/16 inches (D) × 2-3/16 inches (H)} |
| Weight | 1.0 kg(2.2 lb)(without HDD) |
