Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.
Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.
Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
In 2021, Phuc Binh officially becomes UNV’s partner in camera CCTV and video recorder products

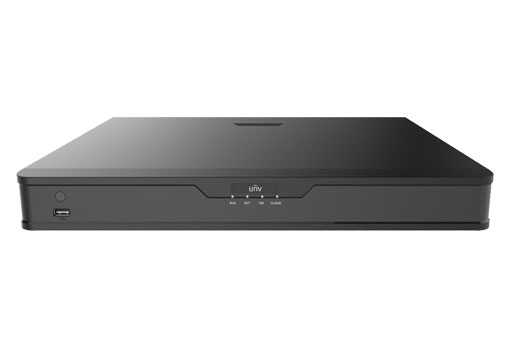

Video recorder UNV NVR302-16S2 is currently distributed by Phuc Binh with full CO, CQ according to project requirements.
• 16-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 2 SATA HDDs, up to 6TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Model | NVR302-16S2 |
Video/Audio Input | |
IP Video Input | 16-ch |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming bandwidth | 160Mbps |
Outgoing bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: |
Audio Output | 1-ch, RCA |
Recording Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
Decoding | |
Decoding format | Ultra265/H.265/H.264 |
Live view/Playback | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30 |
Hard Disk | |
SATA | 2 SATA interfaces |
Capacity | up to 6TB for each disk |
External Interface | |
Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
General | |
Power Supply | 12V DC |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 380mm × 315mm ×53mm (15.0″ × 12.4″ ×2.1″) |
Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
