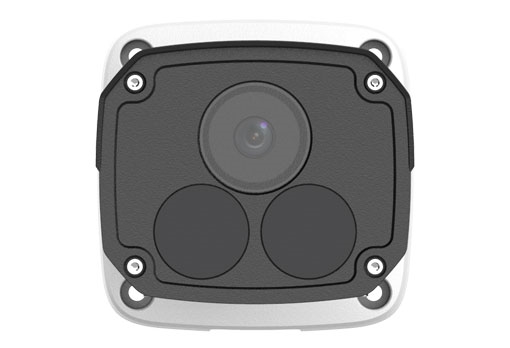

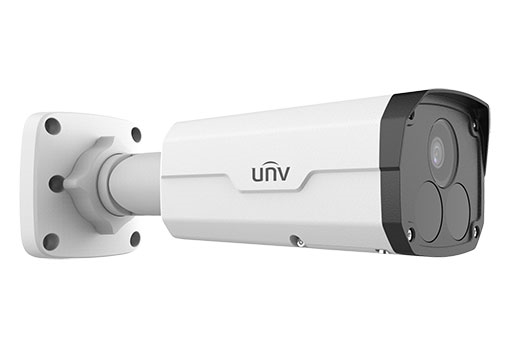

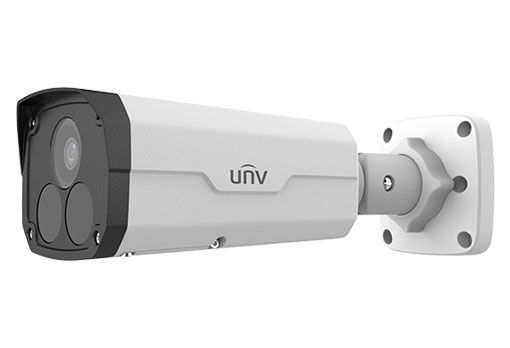

Camera UNV IPC2224SA-DF40K

IPC2224SA-DF40K

Camera

Sensor

1/1.8″, 4.0 megapixel, progressive scan, CMOS

Lens

4mm@F1.6, fixed zoom lens

6mm@F1.6, fixed zoom lens

Iris

Fix aperture

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4

60.0(196.9ft)

24.0(78.7ft)

12.0(39.4ft)

6.0(19.7ft)

Angle of View (H)

94.7°

68.1°

Angle of View (V)

49.6°

41.6°

Angle of View (O)

116.5°

83.8°

Shutter

Auto/Manual, 1 ~ 1/100000s

Min. Illumination

Colour:0.001lux (F1.6, AGC ON)
0 lux with IR

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>55dB

IR Range

Up to 50m (164 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

Video

Video Compression

Ultra 265,H.265,H.264,MJPEG

Frame Rate

Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

ROI

Supported

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas(8 blacks/4 mosaics+4 blacks)


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

HLC

Support

BLC

Support

Smart

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Two way audio

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
Ezview
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Interface

Audio I/O

Audio cable

1 Input: impedance 35kΩ; amplitude 2V [p-p]

1 output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Network

1 x RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC12V(±25%), PoE(IEEE802.3af)

Power consumption: Max 8.5W

Support overcurrent protection and input short circuit protection

Dimensions (Ø x H)

Φ245.6×85.7×85.4mm(Φ12.1″ x 3.4″ x 3.4″)

Net Weight

0.90kg(1.98lb)

Material

Metal

Working Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge protection

6KV

Vandal Resistant

IK10

Ingress Protection

IP67
