Camera UNV IPC2124SS-ADF40KM

  • SKUIPC2124SS-ADF40KM
  • Brandsuniview
  • Originschina
  • Price:Contact
  • Status:Available Stock
  • Guarantee:12 months

Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.

Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

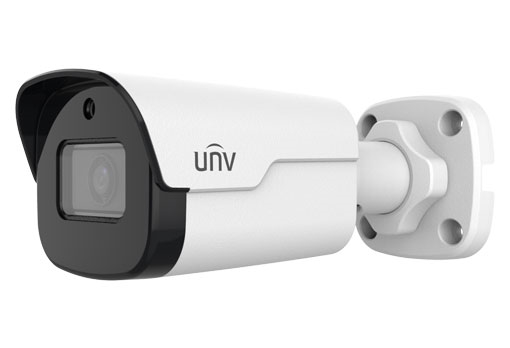

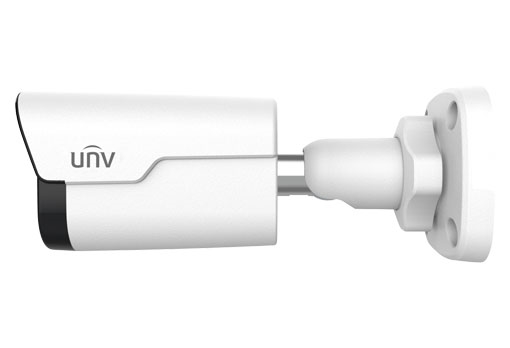

4MP SD Card Mini Fixed Bullet Network Camera
• High quality image with 4MP, 1/3″CMOS sensor
• 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Support 256 G Micro SD card
• IP67 protection
• Support PoE power supply
Camera
Sensor1/3″, 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
4.09036189
Angle of View (H)107.8°82°
Angle of View (V)57.0°41.6°
Angle of View (O)140.1°100.9°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate:0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
IR RangeUp to 40m (131ft) IR range
wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in MicSupport
Network1 RJ45 10M/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%,PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Dimensions (L × W × H)155.9 × 63.1 × 62.7mm (6.1” ×2.5” × 2.5”)
Net Weight0.43kg (0.94lb)
MaterialMetal
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection2KV
Ingress ProtectionIP67
Reset ButtonSupport
