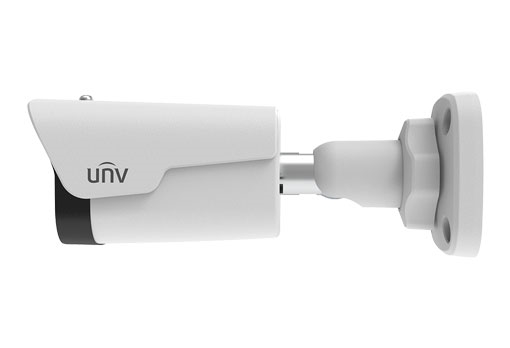

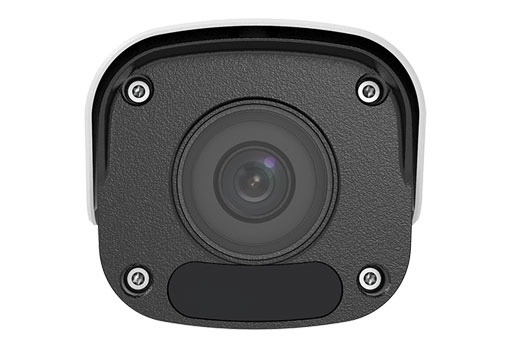

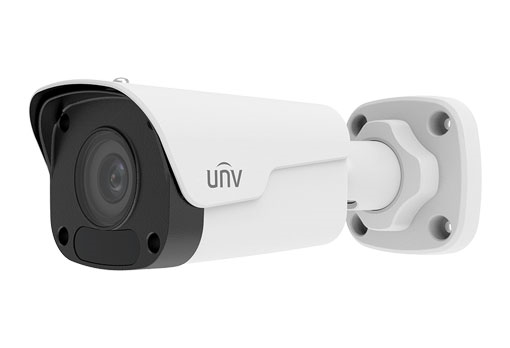

Camera UNV IPC2128LR3-DPF40M-F
- SKUIPC2128LR3-DPF40M-F
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
4K Mini Fixed Bullet Network Camera
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
IPC2128LR3-DPF40M-F | |||||||
Camera | |||||||
Sensor | 1/3″, 8.0 megapixel, progressive scan, CMOS | ||||||
Lens | 4.0mm@F2.0 | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
4.0mm | 120 | 48 | 24 | 12 | |||
Angle of View (H) | 86.5° | ||||||
Angle of View (V) | 44.1° | ||||||
Angle of View (D) | 106.4° | ||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
Shutter | Auto/Manual, 1~1/100000 s | ||||||
Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
S/N | >56dB | ||||||
IR Range | Up to 30m (98 ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline Profile, Main Profile | ||||||
Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
OSD | Up to 4 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 2 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180° | ||||||
Dewarping | NA | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS | ||||||
Compatible Integration | ONVIF(Profile S, Profile T), API | ||||||
Client | EZStation | ||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Interface | |||||||
Network | 10/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 | ||||||
General | |||||||
Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||
Power consumption: Max 5.5W | |||||||
Dimensions (L × W × H) | 167.3×62.9×62.7mm (6.6”×2.5”×2.5”) | ||||||
Net Weight | 0.45kg (0.99lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||||
Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||||
Surge Protection | 2KV | ||||||
Ingress Protection | IP67 | ||||||
Reset Button | Supported |
