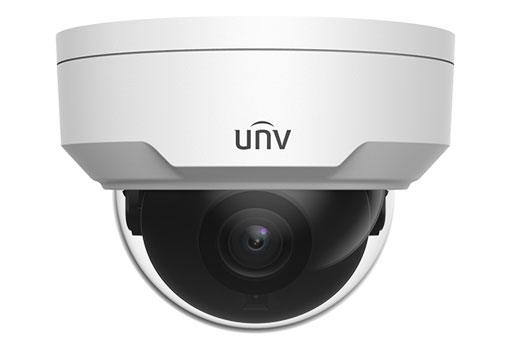

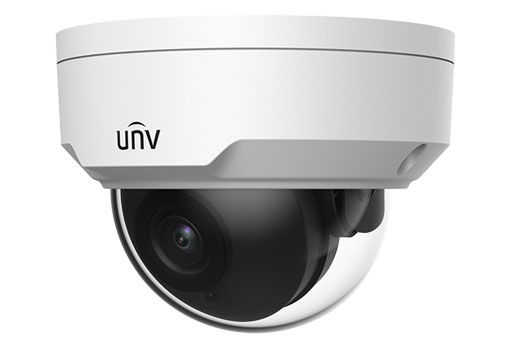

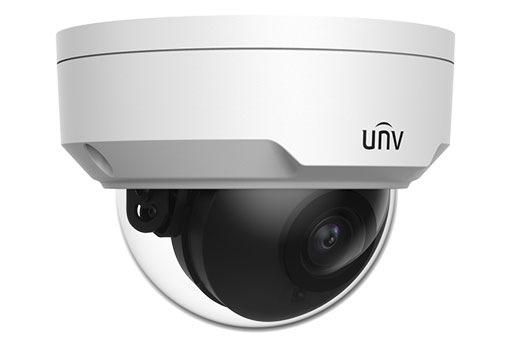

Camera UNV IPC322LB-DSF40K-G
- SKUIPC322LB-DSF40K-G
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
IPC322LB-DSF40K-G | |||||||
Camera | |||||||
Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | ||||||
Lens | 4.0mm@F2.0 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
4.0 | 60 | 24 | 12 | 6 | |||
Angle of View (H) | 91.2° | ||||||
Angle of View (V) | 47.9° | ||||||
Angle of View (O) | 95.9° | ||||||
Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.01Lux ( F2.0, AGC ON) | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
S/N | >52dB | ||||||
IR Range | Up to 30m (98ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
OSD | Up to 4 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Supported | ||||||
Flip | Normal/Vertical/Horizontal/180° | ||||||
Dewarping | N/A | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 128GB | ||||||
Network Storage | ANR,NAS(NFS) | ||||||
Interface | |||||||
Network | 10/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 5.0W | |||||||
Dimensions (Ø x H) | Φ108.7 x 81mm (Ø4.3” x 3.2”) | ||||||
Weight | 0.36kg (0.79lb) | ||||||
Material | Metal + plastic | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 2KV | ||||||
Ingress Protection | IP67 | ||||||
Vandal Resistant | IK10 | ||||||
Reset Button | N/A | ||||||
