Camera UNV IPC328LR3-DVSPF40-F
- SKUIPC328LR3-DVSPF40-F
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

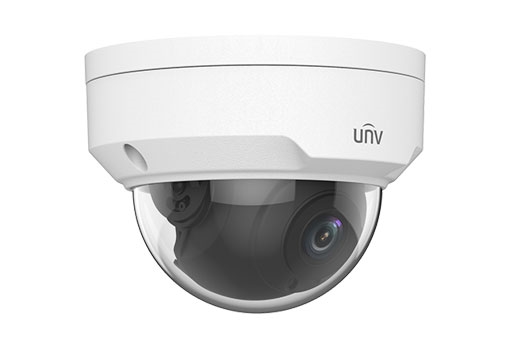

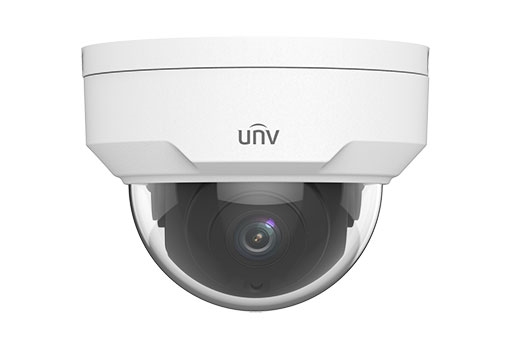

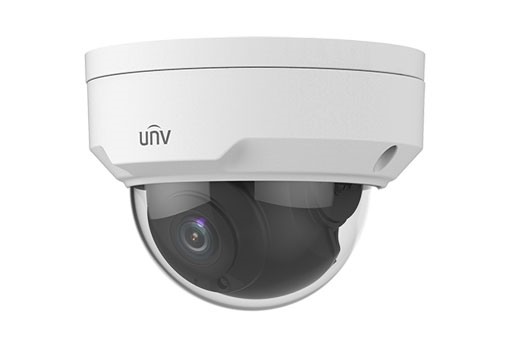

4K Vandal-resistant Network IR Fixed Dome Camera
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
IPC328LR3-DVSPF28-F | IPC328LR3-DVSPF40-F | |||||||||
Camera | ||||||||||
Sensor | 1/3″, 8.0 megapixel, progressive scan, CMOS | |||||||||
Lens | 2.8mm@F2.0 | 4.0mm@ F2.0 | ||||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||||
2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||||
4.0mm | 120 | 48 | 24 | 12 | ||||||
Angle of View (H) | 112.7° | 86.5° | ||||||||
Angle of View (V) | 60.1° | 44.1° | ||||||||
Angle of View (O) | 146.5° | 106.4° | ||||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~68° | Rotate: 0°~360° | |||||||
Shutter | Auto/Manual, 1~1/100000 s | |||||||||
Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) 0Lux with IR | |||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
Digital noise reduction | 2D/3D DNR | |||||||||
S/N | >56dB | |||||||||
IR Range | Up to 30m (98 ft) IR range | |||||||||
Wavelength | 850nm | |||||||||
IR On/Off Control | Auto/Manual | |||||||||
Defog | Digital Defog | |||||||||
WDR | 120dB | |||||||||
Video | ||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
H.264 code profile | Baseline Profile, Main Profile | |||||||||
Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps | |||||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
OSD | Up to 4 OSDs | |||||||||
Privacy Mask | Up to 4 areas | |||||||||
ROI | Up to 2 areas | |||||||||
Motion Detection | Up to 4 areas | |||||||||
Image | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 | |||||||||
Digital noise reduction | 2D/3D DNR | |||||||||
Smart IR | Support | |||||||||
Flip | Normal/Vertical/Horizontal/180° | |||||||||
Dewarping | NA | |||||||||
HLC | Supported | |||||||||
BLC | Supported | |||||||||
Network | ||||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS | |||||||||
Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||||
Client | EZStation EZView EZLive | |||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
Interface | ||||||||||
Network | 10/100M Base-TX Ethernet | |||||||||
Certifications | ||||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||||
General | ||||||||||
Power | DC12V±25%, PoE (IEEE802.3 af) | |||||||||
Power consumption: Max 5.5w | ||||||||||
Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | |||||||||
Net Weight | 0.45kg (0.99lb) | |||||||||
Material | Metal + Plastic | |||||||||
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||||
Strorage Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||||
Surge Protection | 2KV | |||||||||
Ingress Protection | IP67 | |||||||||
Vandal Resistant | IK10 |
