Camera UNV IPC3618LR3-DPF28-F

  • SKUIPC3618LR3-DPF28-F
  • Brandsuniview
  • Originschina
  • Price:Contact
  • Status:Available Stock
  • Guarantee:12 months

Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.

Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…

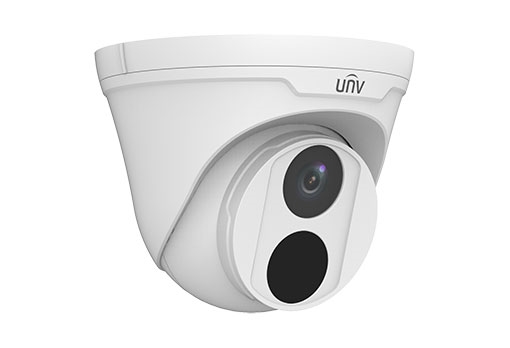

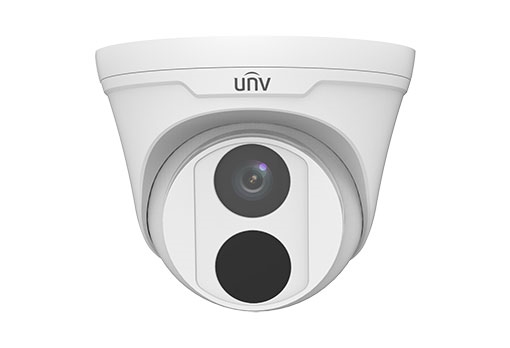

Dome Network Camera

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
IPC3618LR3-DPF28-FIPC3618LR3-DPF40-F
Camera
Sensor1/3″, 8.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.04.0mm@2.0
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm8433.616.88.4
4.0mm120482412
Angle of view(H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
ShutterAuto/Manual, 1~1/100000 s
Adjustment anglePan: 0°~360°Tilt: 0°~80°Rotate:0°~360°
Min. IlluminationColour: 0.05 Lux (2.0, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>56dB
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline Profile, Main Profile
Frame RateMain Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible IntegrationONVIF (Profile S+ Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network10/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5W
Dimensions (Ø x H)Φ118×96mm (Φ4.6”×3.8”)
Net Weight0.33kg (0.73lb)
MaterialMetal + Plastic
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Strorage Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Surge Protection2KV
Ingress ProtectionIP67
