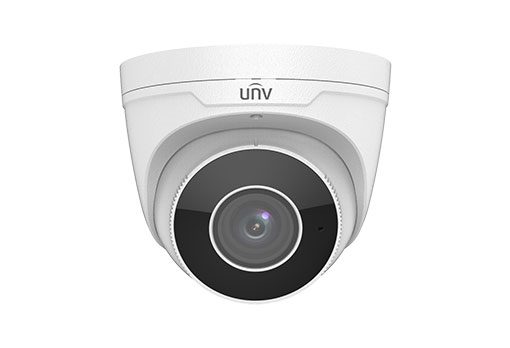

Camera UNV IPC3635SR3-ADPZ-F
- SKUIPC3635SR3-ADPZ-F
- Brandsuniview
- Originschina
- Price:Contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
5MP WDR VF Eyeball Network IR Camera
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
| IPC3635SR3-ADPZ-F | |||||||
| Camera | |||||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AFautomaticfocusing andmotorizedzoomlens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.1 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270.3 | 108.1 | 54.1 | 27.0 | |||
| Angle of view (H) | 96.23°~ 31.69° | ||||||
| Angle of View (V) | 69.98°~ 24.28° | ||||||
| Angle of View (O) | 125.10°~37.39° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile | ||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||
| Dewarping | NA | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Built-in Mic | Supported | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 8.16W | |||||||
| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | ||||||
| Net Weight | 0.67kg (1.48lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
| Reset Button | Supported | ||||||
