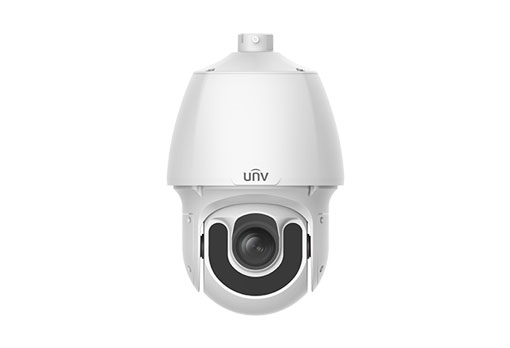

Camera UNV IPC6253SR-X33
- SKUIPC6253SR-X33
- Brandsuniview
- Originschina
- Price:contact
- Status:Available Stock
- Guarantee:12 months
3MP 33x IR Network PTZ Dome Camera
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
3MP 33x IR Network PTZ Dome Camera
- 1/2.8″ progressive scan CMOS
- Up to 2048 × 1536 resolution, 30fps
- 33x optical zoom (4.5~148.5mm)
- Smart IR, up to 150m IR distance
- Alarm I/O, Audio I/O, ONVIF
- AC24V, DC24V, 11~47W
- IP66, –40°C ~ +70°C
| Camera | |
| Sensor | 1/2.8″, 3 megapixel, progressive scan, CMOS |
| Lens | 4.5 ~ 148.5 mm (33x optical zoom) |
| Angle of View (H) | 62.93° (wide) ~ 3.51° (tele) |
| Iris | Auto/Manual; F1.6 ~ F5.3 |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
| Minimum Illumination | Colour: 0.02 Lux (F1.6, AGC ON)0 Lux with IR |
| S/N | >55 dB |
| WDR | 120 dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Video | |
| Max. Resolution | 2048 × 1536 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 3MP (2048×1536):Max.30 fps; 1080P (1920×1080):Max.60 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Digital Zoom | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 256 |
| Patrol | Preset patrol, route patrol, recorded patrol |
| Home Position | Supported |
| Interface | |
| Audio I/O | Audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC (Default), 24 V DC |
| Power consumption: 11~47W | |
| Dimensions (Ø x H) | Ø227 x 359.4 mm (Ø8.9” x 14.2”) |
| Weight | 5.5 kg (12.1 lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
