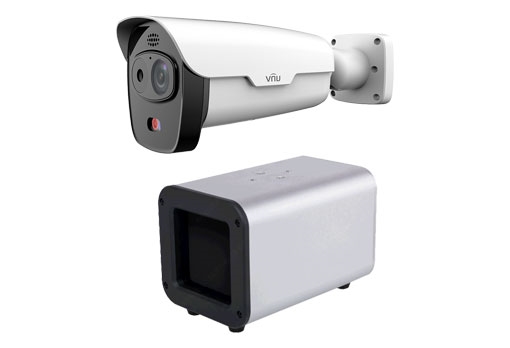

Camera Uniview TIC2221TER5-F3-4F4AP
- SKUTIC2221TER5-F3-4F4AP
- Brandsuniview
- Originschina
- Price:contact
- Status:Available Stock
- Guarantee:12 months
Uniview is a leading global manufacturer of porfessional video surveillance devices and solutions. Know as one of the companies to invent the network camera in China, Uniview (UNV) has continued to bring cutting-edge technologies to the industry.
Uniview provides complete product lines including network camera (camera UNV), network video recorder (NVR), storage, transmission, display devices, LED, smart board…
- Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
- Starlight illumination
- Supports human body temperature screening which should be used with black-body
- Supports face detection
- Supports mask and human body temperature attribute collection
- Supports alarm when no mask and abnormal temperature are detected
- Supports audio and light alarm
- Ultra 265, H.265, H.264, MJPEG
- Max 60fps @ 2688 x 1520 in the optical module
- Max 25fps @ 720p in the thermal module
- ONVIF Conformance
- DC12V or PoE power supply
- Wide voltage range of 25% in DC
- Micro SD, up to 256 GB
- Alarm 2 in and 2 out, Audio 1 in and 1 out
| TIC2221TER5-F3-4F4APCA | |
| Optical Module | |
| Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS |
| Lens | 4mm@F1.6, |
| Iris | Fixed aperture |
| Angle of View (H) | 91.2° |
| Angle of View (V) | 48.0° |
| Frame Rate | 4MP(2688*1520), Max 60fps |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with IR |
| WDR | 120dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50m (164 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| BLC | Supported |
| Thermal Module | |
| Sensor type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 256*192 |
| Angle of View (H) | 56.0° |
| Angle of View (V) | 42.0° |
| Frame Rate | 720P(1280*720), Max 25fps |
| Response waveband | 8~14μm |
| Pixel size | 12μm |
| IFOV | 3.75mrad |
| NETD | ＜50mk @f1.0 @25°C |
| Lens(focal length) | 3.2mm@F1.1 |
| Palette | Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce |
| Temperature screening accuracy | |
| Temperature range | 30°C~42°C |
| Temperature accuracy | ±0.3℃（with black-body）,without black-body is not supported |
| Temperature screening working environment | 16°C~32°C |
| Smart | |
| Human body Temperature screening | Support human body temperature screening when OSD displays the temperature on the body surface or inside Support human body temperature screening alarm, and set alarm threshold temperature |
| Audio and light alarm | Support audio and light warning function, with red and blue warning lights built in |
| Face detection | Optical camera support face detection |
| Attribute collection | Support mask and human body temperature attribute collection |
| Alarm | Support alarm when no mask and abnormal temperature are detected |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Video | |
| Compression | Ultra265, H.265, H.264, MJPEG |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas(8 blacks) |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Two-way audio | Supported, Built in mic and speakers |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, |
| Compatible Integration | ONVIF (Profile S, Profile G) |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 2/2 |
| Serial Port | 1 RS485 |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | DC12V(±25%), PoE(IEEE802.3af) |
| Power consumption: Max 11W | |
| Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection | |
| Dimensions (Ø x H) | Φ306.4mmx115.9mmx104.1mm(Φ12.1’’x4.6’’x4.1’’) |
| Net Weight | 1.8kg(3.96lb) |
| Installation method | Tripod |
