Panasonic Corporation provides products in the group of security cameras (Security camera & CCTV / Surveillance system). These camera products are manufactured on high-tech lines, combined with the professionalism in management & production of the Japanese – Bringing trust value to users.
- Full-HD
- 12x Optical zoom/10x digital zoom 72.5° Horizontal wide-angle
- Pan range: ±130°/tilt range: +90°/–25°
- Ceiling mount possible with the optional KX-VCZ170 ceiling bracket
- Can be controlled from the remote control of HDVC System

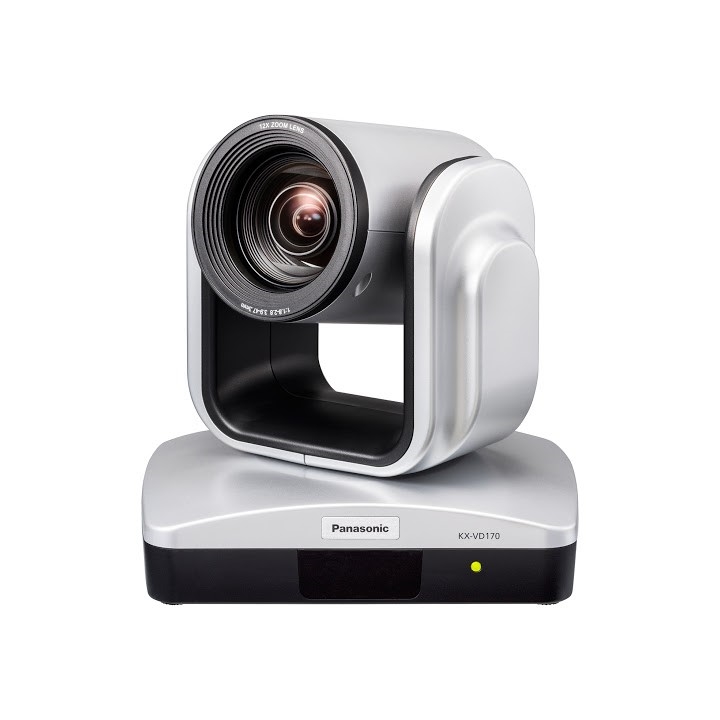

| HD Communication Camera | GP-VD170 |
| Effective Pixels | 1920 x 1080p |
| Pan / Tilt | Pan: ±130°, Tilt: ＋90°-25 |
| Zoom (optical/digital) | 12x / 10x |
| Angle of view (optical zoom) | Horizontal angle of view 72.5 º (Wide end) – 6.3º (Tele end) |
Vertical angle of view 44.9º (Wide end) – 3.8º (Tele end) | |
F1.8 (Wide end) – F2.8 (Tele end) | |
| Presets | 12 positions |
| Connection Cable | HDMI |
| Dimensions (width x depth x height) | Approx. 180 mm x approx. 145 mm x approx. 184 mm |
| Weight | Approx. 1.6 kg |
| Power Consumption | Power supply voltage: |
12 VDC±10% (with AC adaptor attached) Consumption current: 1.2 A | |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 20 % to 90 % (non-condensing) |
