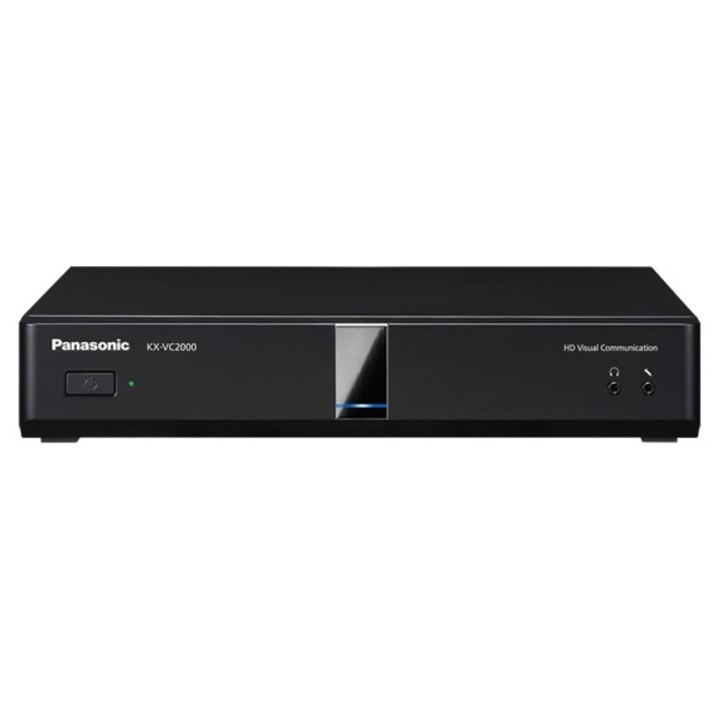

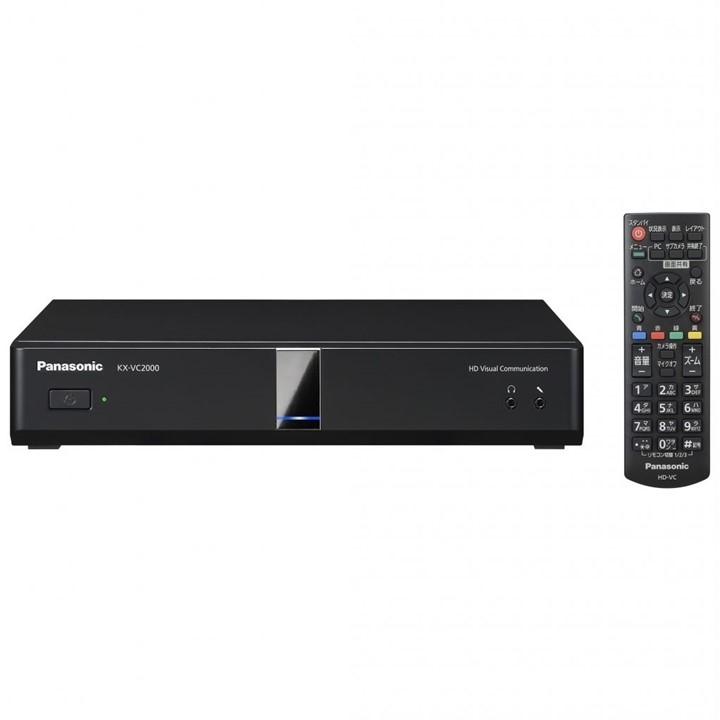

Panasonic KX-VC2000

  • SKUKX-VC2000
  • Brandspanasonic
  • OriginsJapan
  • Price:Contact
  • Status:Available Stock
  • Guarantee:12 months

Panasonic Corporation provides products in the group of security cameras (Security camera & CCTV / Surveillance system). These camera products are manufactured on high-tech lines, combined with the professionalism in management & production of the Japanese – Bringing trust value to users.

  • 24-Site Connection,Dual Network
  • Participation in video conferences using mobile devices
  • High quality video Full-HD 1080/60p

Main Unit

KX-VC2000

Communication MethodSIP, H.323
Video Compression MethodH.261 (mainstream only), H.263, H.263+, H.263++ (reception only),
H.264 High Profile, H.264 Baseline Profile
Audio Compression MethodG.711 μ-law, A-law (3.4 kHz@64 kbps)
G.722 (7.0 kHz@64 kbps)
G.722.1 (7.0 kHz@32 kbps)
G.722.1 Annex C (14.0 kHz@48 kbps/24 kbps)
MPEG-4 AAC‑LD Mono (7.0 kHz@32 kbps, 14.0 kHz@64 kbps, 22.0 kHz@96 kbps)
MPEG-4 AAC‑LD Stereo (14.0 kHz@64 kbps, 22.0 kHz@96 kbps)
No. of ChannelsG.711/G.722/G.722.1/G.722.1 Annex C: 1
MPEG-4 AAC-LD Mono: 1/ MPEG-4 AAC-LD Stereo: 2
Remote Camera ControlH.224, H.281 (Zoom/Pan/Tilt/Preset)
Dual StreamMethodH.239 (H.323), BFCP (SIP)
Multi-Monitor3 displays
No. of Applicable Resolution FramesMain: Max. 1080p 30 frames/second, Sub: Max. 1080p 30 frames/second
EncryptionSRTP (AES 128 bit), H.235 (AES 128 bit)
OtherH.460
Communication Bandwidth256 kbps to 24 Mbps
VideoCompatible Resolutions*1176 x 144p, 352 x 240p, 352 x 288p, 512 x 288p, 640 x 480p, 704 x 480p,
704 x 576p, 768 x 432p, 800 x 600p, 1024 x 768p, 1280 x 720p, 1280 x 768p,
1280 x 800p, 1920 x 1080p
No. of FramesMax. 60 frames/second (for H.264 1080p)
Screen DisplayFull-screen, Picture in Picture, Picture with Picture, Side by Side
AudioEcho canceller, Auto gain control, Stationary noise reduction,
Lip synch, Equalizer, Mic mute
I/O TerminalsVideo InputCamera*2HDMI main x 1, HDMI sub x 1
Input resolution: 1280 x 720p, 1920 x 1080i, 1920 x 1080p
PCRGB x 1(Mini D-sub 15pin), HDMI x 1*2
Input resolution: VGA, SVGA, XGA, HD, WXGA, SXGA, FWXGA,
WXGA+, WXGA++, UXGA, WSXGA+, Full-HD
Video OutputHDMI x 2,
HDMI x 1 (For own site/recording video),
RCA x 1 (Component)
Supported output resolutions: 1920 x 1080i, 1920 x 1080p
Audio InputDigital Boundary Microphone x 1 (KX-VCA001) Max. 4,
Analogue Boundary Microphone x 1 (KX-VCA002) Max. 1,
HDMI, Stereo mini-plug*3*4x 1 (ø3.5 mm), RCA*5(Stereo) x 1
Audio OutputHDMI*6, Stereo mini-plug*3*7x 1 (ø3.5 mm), RCA*8x 1 (Stereo)
NetworkRJ45 x 2 (1000BASE-T/100BASE-TX Full Duplex)
External ControlRS-232C x 1 (Also used for maintenance)
OthersUSB 2.0*9x 1, Camera Control Terminal x 1 (Not used)
No. of Simultaneous Connection Sites16 (Expandable up to 24)
Content SharingPC (RGB/HDMI), Sub-camera (HDMI sub)
USB Host Mode
(USB Memory)
Updating Software, Recording,
Import: Contact List / Profile*10/ Configuration Data / Encryption Data /
Start-up Screen / Delivery Tree List
Export: Contact List / Profile*10/ Configuration Data / Encryption Data /
Delivery Tree List
USB Device ModeUSB Video Class: Version 1.0
USB Audio Class: Version 1.0
WEB Hybrid ModeUSB Audio Class 1.0
Network ProtocolTCP/IPv4, TCP/IPv6*11, UDP/IPv4, UDP/IPv6*11, DHCP, DNS,
HTTP, HTTPS, TELNET, NTP
Network FunctionsPacket resending (ARQ), Forward Error Correction (FEC),
Adaptive Rate Control (ARC), Reorder, Packet Shaping,
Arbitrary Port Setting, NAT Compatibility, Encryption,
IP Precedence/DiffServ Support
External ControlVia Web Browser, Control by HTTP CGI, TELNET, RS-232C
Connection ModesIP mode, NAT Traversal mode, IP / NAT Traversal mode
Dimensions (width x depth x height)Approx. 320 mm x approx. 270 mm x approx. 61 mm (Excluding projecting parts)
WeightApprox. 3.4 kg (approx. 7.5 lb)
Power InputAC 100-240 V, -1.0 A, 50/60 Hz
Power ConsumptionMaximum: approx. 73 W, Standby: 0.6 W
DC Power InputDC 24 V, 3.0 A
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity10 % to 90 % (non-condensing)
LanguageEnglish, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Russian, Chinese, Arabic
