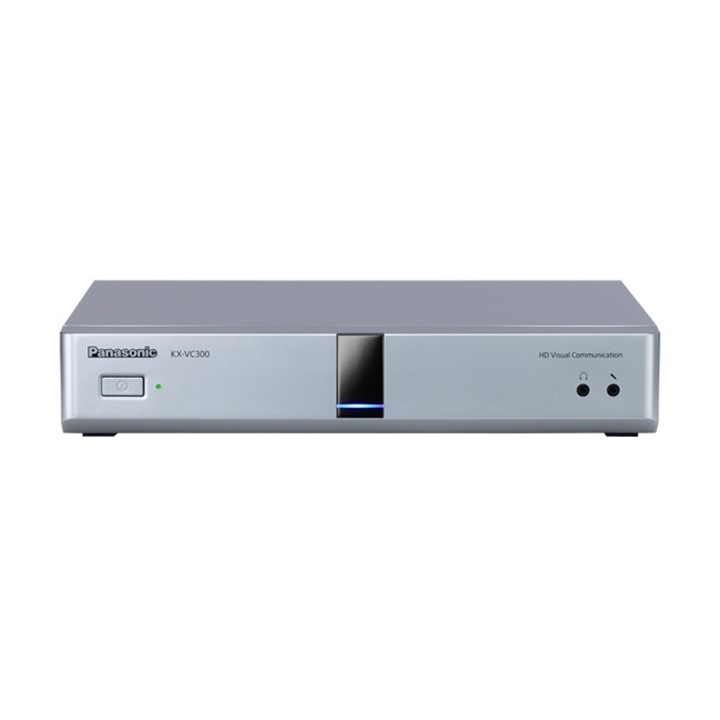

Panasonic KX-VC300 Main Unit Specifications

  • SKUKX-VC300
  • Brandspanasonic
  • OriginsAsia
  • Status:Available Stock

Panasonic Group majorly supplies products including security cameras (Security camera & CCTV / Surveillance system) from the main factory located in China for the global market.

In addition, Panasonic also has a factory in Japan specializing in the production of surveillance camera equipment to serve the needs of domestic market & export. These camera products are manufactured on high technology lines, combined with the professionalism in Japanese management & production – Bring trust value to users.

KX-VC300 – Panasonic Full HD video conferencing equipment, exclusively distributed by Phuc Binh Company, with sophisticated design combined with outstanding features, promises to bring memorable experiences about a quality product.

– Minimize latency with QoS technology (Quality of Service)
– Connect points: 2 points.
– Image standard: 1920×1080 (Full HD)
– Mic connection: Analog
– HDMI / RCA image output (Component)
– Audio out: RCA Stereo / 1 headphone jack / HDMI output for pictures
– Connection Network: Internet connection via VPN / NAT Panasonic / SIP
– Audio output: RCA Stereo / 1 headphone jack / HDMI output for pictures
– Network connection: Internet connection via VPN / NAT Panasonic / SIP

Panasonic KX-VC300Main Unit Specifications


Video Codec

ITU-T H.264 high profile

ITU-T H.264 baseline profile (For connection to MCUs and non-Panasonic videoconference systems)

Compatible Resolutions

1920 x 1080p** / 1920 x 1080i** / 1280 x 720p / 1280 x 540p / 960 x 540p / 704 x 480p / 352 x 240p

Camera Input Resolution

1920 x 1080i

PC Input Resolutions



Audio Codec

MPEG-4 AAC LD, G.722, G.722.1/G.722.1 AnnexC

No. of Channels


G.722, G.722.1, G.722.1 Annex C: 1


MPEG-4 AAC LD: 32 kbit/s (Monaural only), 64 kbit/s, 96 kbit/s (per channel)

G.722: 64 kbit/s

G.722.1: 32 kbit/s

G.722.1 Annex C: 48 kbit/s

Sound Processing Function

Stereo Echo Canceller


Analogue Boundary Microphone KX-VCA002(Option)


Communication protocol

SIP, H.323


AV QoS Call Control (wired and wireless)

Encrypted Transmission


Maximum Conference Points


External Interface

Video Input

HDMI (Camera) x 2, RGB (PC) x 1 (Switchable 3 inputs)

Video Output

HDMI x 1, RCA (Component) x 1

Audio Input

Analogue Boundary Microphone port x 1,

RCA (Stereo) x 1,

Stereo mini-plug (Headset) x 1

Audio Output

RCA (Stereo) x 1 (Audio output to display is via HDMI),

Stereo mini-plug (Headset) x 1


RJ45 x 1

Dimensions (W x D x H)

Approx. 320 x 230 x 60 (mm)


Approx. 2.0 kg

Power Input

AC 100-240 V, 1.2-0.6 A, 50/60 Hz

DC 16 V, 2.5 A

Power Consumption

Maximum: approx. 23 W

Operating Temperature

0 °C to 40 °C

Operating Humidity

10 % to 90 % (non-condensing)
