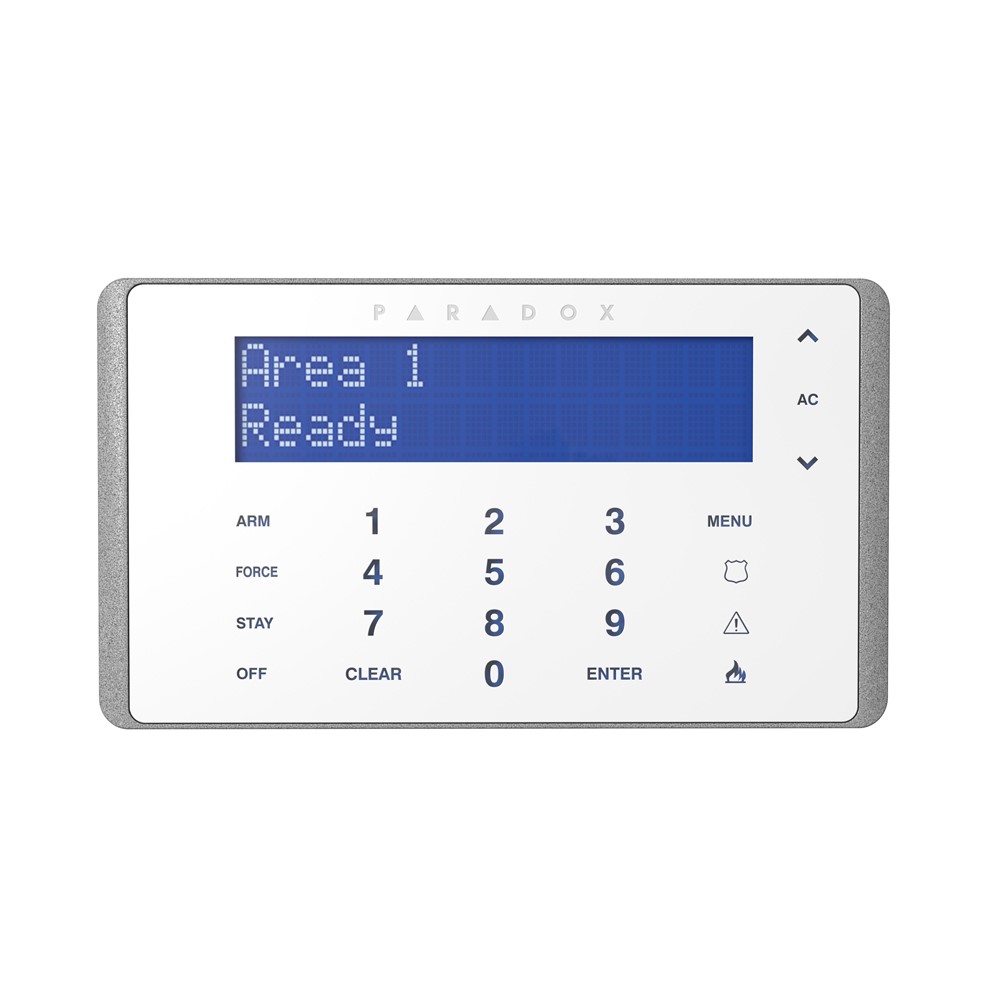

Paradox K656 Touch Sense LCD Keypad

The K656 Touch Sense LCD Keypad provides touchpad technology with simplified menu-driven navigation. Whether arming or disarming your system, bypassing zones, or viewing the system status, the menu-driven prompts guide you every step of the way. The sleek, innovative K656 Touch Sense LCD Keypad makes using your security system easier than ever.

PHUCBINH GROUP distributes genuine Paradox products.

Touch Sense keys with LED backlighting
Streamlined, compact design
Zone alarm display
Installer Upload/Download software (Babyware Q4)
In-field firmware upgradable via Paradox InField Firmware Upgrade Software
Simplified end-user remote control programming
32-character blue LCD screen
Available in multiple languages
Assign to one or more partitions
1 addressable zone input and 1 PGM output
Independently set chime zones
One-touch action buttons
Three keypad-activated panic alarms
Adjustable backlight, contrast, and scroll speed
Display time using the 12 or 24 hr. format

Paradox K656 Touch Sense LCD Keypad

Power Input	9 to 16 Vdc
Consumption	38 mA; max 76 mA
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions	15 x 8.5 x 2 cm (5.9 x 3.3 x 0.8 in.)
Compatibility	EVO control panels
