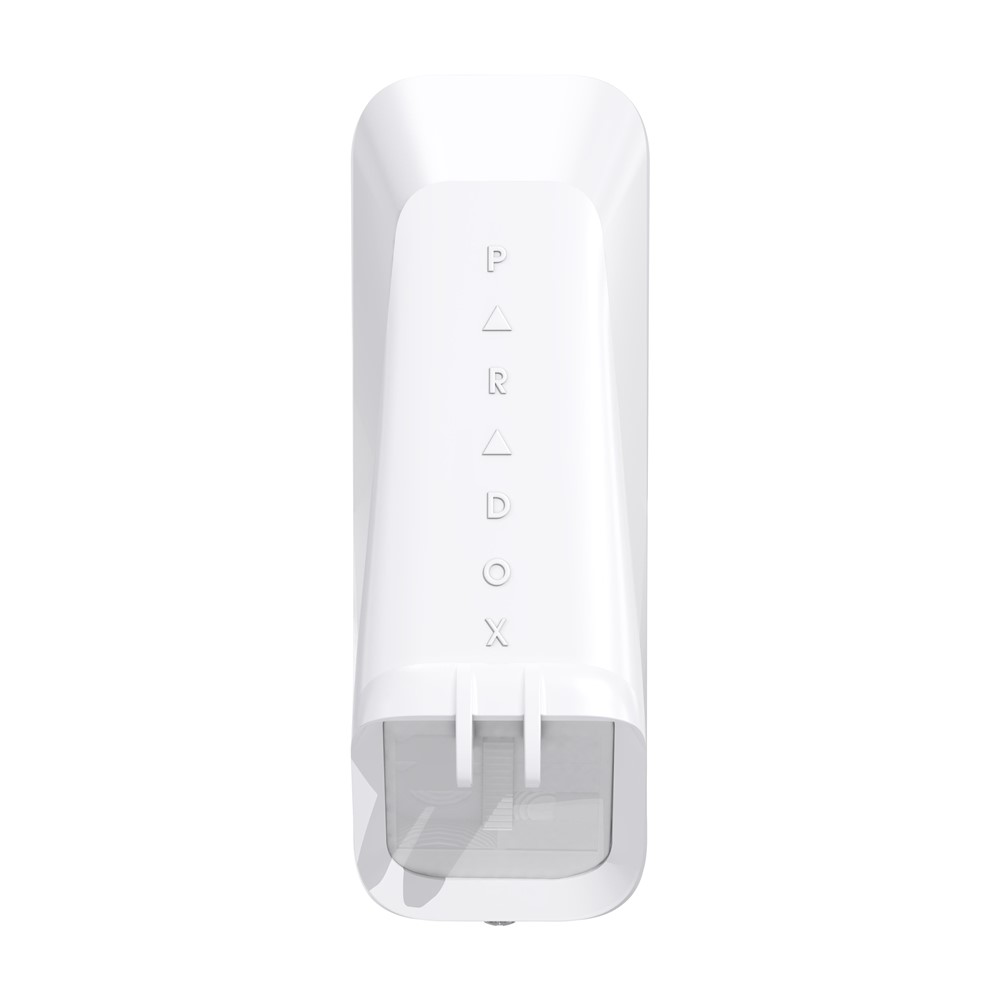

Paradox NV35MX Window and Sliding Door Dual Detector
- SKUNV35MX
- Brandsparadox
- OriginsCanada
- Price:Contact
- Status:Available Stock
The NV35MX module connects to an EVO communication bus and provides a superior outdoor and indoor solution for windows and sliding doors. The detector is optimized to discriminate false alarms triggered by small birds, cats and dogs.
The detector has two operation modes:
Pet Immunity Mode protection is provided for outdoor windows and sliding doors measuring up to 7.5 x 2m (25 x 7 ft). For indoor applications, pet immunity can be optionally switched off to provide Sharp Mode protection with enhanced detection for indoor windows and sliding doors up to 10 x 2m (33 x 7 ft).
The NV35MX uses an extremely narrow beam optic pattern of 0.5m at 5m (1.6 ft at 16 ft), enabling movement in close proximity to the protected door or window without false alarms. It also features integrated creep zone detection.
The NV35MX’s robust detection capabilities, outstanding stability and high false alarm rejection rate are a result of the system’s dual optics beam pattern, Paradox Super Pet Immunity and our field-proven Active IR Anti-Mask detection.
PHUCBINH GROUP distributes genuine Paradox products.
- Pet Immune detection
- Anti-masking – Active IR detection for sprayed liquids and blocking items up to 30 cm
- Integrated creep zone detection
- Dual detectors controlled by Full Authority Digital Electronics Control (FADEC)
- Optical pet discrimination geometry to support Super Pet Immunity
- Dual tamper detection
- Wired, EVO bus output
- EN 50131-2-2 Grade 3
Paradox NV35MX Window and Sliding Door Dual Detector
Movement Detection | 2 Dual Element sensors |
Coverage distance | Super Pet Immunity Mode: 7.5 x 2m (25 x 7 ft) Sharp Mode (Pet Immunity off): 10 x 2m (33 x 7 ft) Beam width: 0.5m at 5m (1.6 ft at 16 ft) |
Anti-masking | Active IR detection for blocking items up to 30 cm (11.8 in.) in front of the detector and sprayed liquids |
Indication | RGB status LED |
Power | 12 Vdc nominal 10.0V to 15 Vdc, 20 mA |
Operating Temperatures | -35º to 60º C (-31º to 140º F) |
Tamper | Dual – Cover and Wall |
Dimensions | 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.) |
Weight | 100g / 0.2 lb |
Certification | EN 50131-2-2 Grade 3 Class IV |
