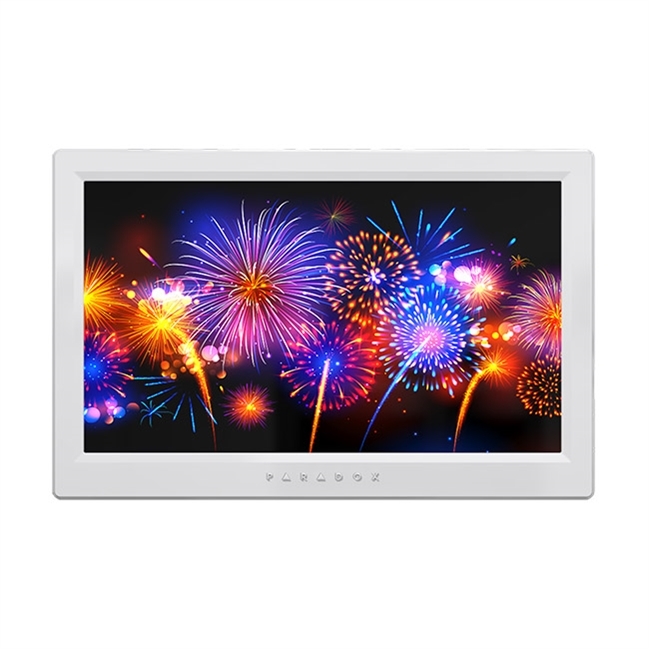

The Paradox TM70 is a touch screen input keypads designed to communicate with Paradox control panels, and offer user friendly interface. It is compatible with Spectra, Magellan and EVO Paradox systems, and supports Paradox’s next generation Swan panels with RS-485 fast encrypted bus, and features like complete menu programming, remote keypad firmware upgrade and screen saver images download from the Insite GOLD application.
The TM70 has screen savers with auto mode, adjustable brightness with auto dim mode and full dark sleep mode, indoor temperature display, bus voltage monitoring and easy multi-partition control.
PHUCBINH GROUP distributes genuine Paradox products.
- 7″ vivid color display
- Built-in zone input
- Customizable labels (zones, partitions, users, doors, and PGMs)
- External SD Media Card slot (4 GB with 2 GB of free space) for uploading photos; acts like a digital picture frame
- Firmware upgradable via SD card
- Indoor temperature reading
- In-wall bracket (optional)
- Compatible with Swan, EVO, Spectra and Magellan
| Power Input | 9 to 15 VDC |
| Consumption | 250 mA at max brightness + 80 mA sounder |
| Wire Connection | 18 Gauge |
| Display | 7” 800 x 480 |
| Dimensions | 17.7 x 11.4 x 1.5 cm (7 x 4.5 x 0.6 in.) |
| Humidity | 5-90% |
| Indoor Temperature | Yes |
| SD Card | 4 GB; 2 GB free |
| Input | Zone, configurable |
| Tamper | Built-in, cover and wall |
| Compatibility | Swan, EVO, Spectra, Magellan |
| Remote Upgrade | Swan only |
| Jpeg Download | Swan via Bus, EVO / Spectra SD Card |
| Auto Dim | Yes |
| Chime | Yes |
