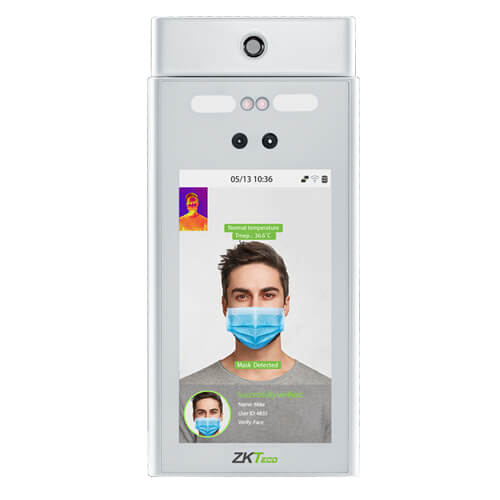

RevFace15[TI] is designed based on the latest facial recognition algorithm and ZKTeco’s customized CPU for running intelligent engineering facial recognition algorithms. With the support of the mighty computing power and facial recognition algorithm, the terminal also integrates large resolution thermal imaging modules with Computer Vision facial recognition system. RevFace15[TI] realizes fast and accurate biometric authentication approval coupled with detection and alerts for users not wearing masks and those with abnormal body temperature. It also improves the efficiency of crowd screening in public places.
- Display: 7-inch touch screen
- Face Capacity: 10,000 (Standard), 20,000 (Optional)
- Transaction Capacity: 200,000
- Temperature Measurement Response Time: ≤100ms
- Temperature Measurement Distance30cm to 120cm (0.98ft to 3.94ft)
- Temperature Measurement Range20°C to 50°C (68°F to 122°F)
(Best performance: 28°C to 42°C or 82.4°F to 107.6°F) - Temperature Measurement Accuracy±0.3°C (±0.54°F), tested in a distance of 80cm (2.63ft)
under 25°C (77°F) environment - Operation SystemLinux
- Standard FunctionsADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays,
Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods - HardwareQuad-core ARM Cortex-A7@ 1.2GHz, 1GB RAM / 8GB Flash,
2MP WDR Low Light Camera, Adjustable Light Brightness LED - CommunicationTCP/IP, Wiegand Input / Output, Wi-Fi, RS485 / RS232
- Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
- AC AdapterDC 12V 3A
- Operating Temperature16°C to 35°C (60.8°F to 95°F)
- Dimension120 * 266.5 * 27.7mm
- SoftwareZKBio Access IVS
