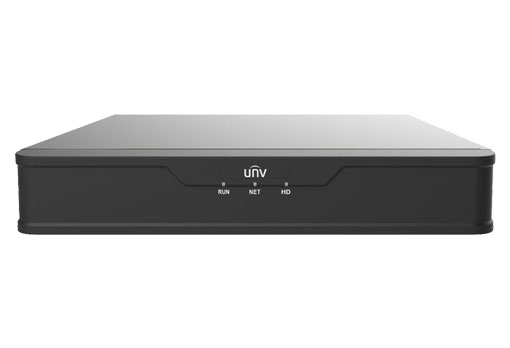

Video recorder UNV NVR301-08S2-P8
- SKUNVR301-08S2-P8
- Brandsuniview
- Originschina
- Status:Limited Stock
Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.
Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.
Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
In 2021, Phuc Binh officially becomes UNV’s partner in camera CCTV and video recorder products
Video recorder UNV NVR301-08S2-P8 is currently distributed by Phuc Binh with full CO, CQ according to project requirements.
• 8-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA
• HDMI and VGA simultaneous output
• Up to 6MP resolution recording
• 1 SATA HDD up to 6 TB
• Support cloud upgrade
| Model | NVR301-08S2-P8 |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Network | |
| Incoming Bandwidth | 50Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 6MP@20,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| External Interface | |
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2″×9.4″×1.8″) |
| Weight (without HDD) | 1.1kg (2.43 lb) |
