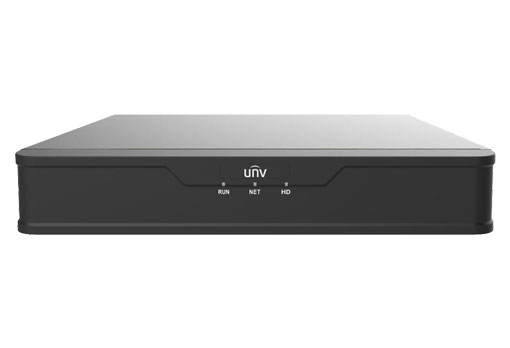

Video recorder UNV NVR301-08S3

  • SKUNVR301-08S3
  • Brandsuniview
  • Originschina
  • Status:Available Stock

Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.

Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.

Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.

In 2021, Phuc Binh officially becomes UNV’s partner in camera CCTV and video recorder products

Video recorder UNV NVR301-08S3 is currently distributed by Phuc Binh with full CO, CQ according to project requirements.

• Support Ultra 265/H.265/H.264 video formats
• 8 channels input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• 1 SATA HDD up to 6TB
• Support cloud upgrade

Model

UNV NVR301-08S3

Video/Audio Input

IP Video Input

8-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

48Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, 3.5mm

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4x 1080p@30, 8 x 720p@30, 16 x D1@25

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

General

Power Supply

12V DC
Power Consumption: ≤5 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 46mm (10.2″×9.4″×1.8 “)

Weight (without HDD)

≤0.98kg (2.16 lb)
