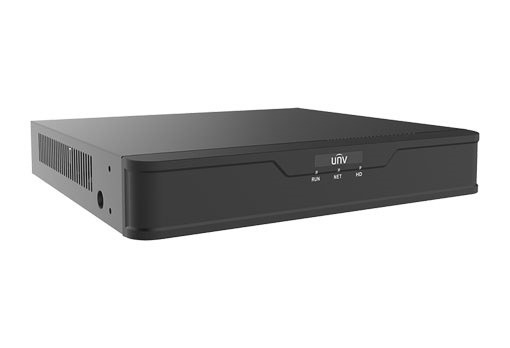

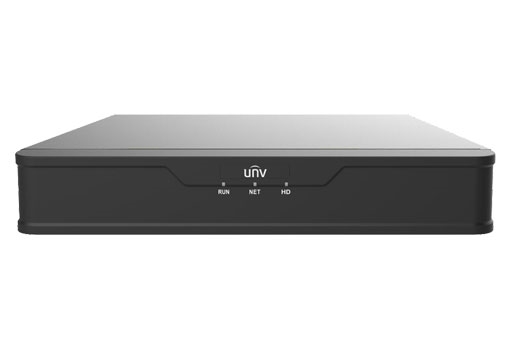

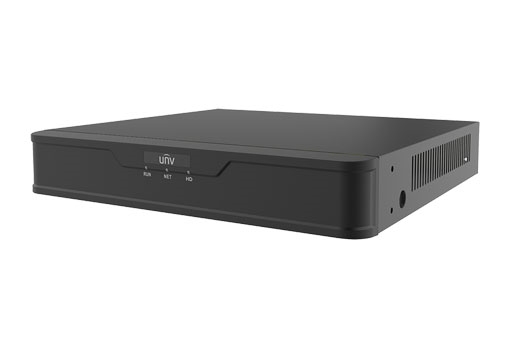

Video recorder UNV NVR301-08X-P8
- Status:Limited Stock
Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.
Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.
Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
Video recorder UNV NVR301-08X-P8 is currently distributed by Phuc Binh with full CO, CQ according to project requirements.
• 8-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD up to 6 TB
• Support cloud upgrade
|IP Video Input||8-ch|
|Two-way Audio Input||1-ch, RCA|
|Protocols||P2P, UPnP, NTP, DHCP, PPPoE|
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
|Corridor Mode Screen||3/4/5/7/9|
|Decoding format||Ultra 265/H.265/H.264|
|Capability||2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30|
|SATA||1 SATA interface|
|Capacity||up to 6TB for each disk|
|Network Interface||1 RJ45 10M/100M self-adaptive Ethernet Interface|
|USB Interface||Rear panel: 1 x USB2.0,1 x USB3.0|
|Power Supply||12V DC|
Power Consumption: ≤8 W (without HDD)
|Working Environment||-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)|
|Dimensions (W×D×H)||260mm × 240mm × 47mm (10.2″×9.4″×1.9 “)|
|Weight (without HDD)||1.3kg (2.87 lb)|
