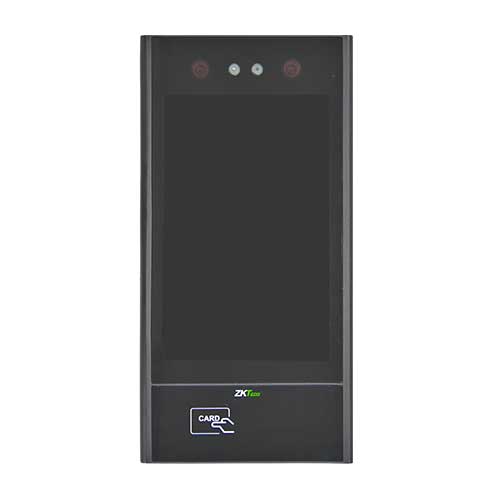

G5 is an multi-biometric access control terminal designed for outdoor use, the product supports various biometrics authentication, including facial recognition, fingerprint verification, multi-tech cards detection and password. Also with an 8 inch TFT color touch screen with narrow bezel design and IP66 waterproof & dustproof and IK04 vandal proof protection level.
• 8 inch TFT color touch screen with narrow bezel design
• Support various biometrics authentication, including facial recognition, multi-tech cards detection and password
• Facial recognition distance: 0.3m to 3m, facial recognition duration less than 1 second per user,
facial recognition accuracy rate ≥ 99%
• Record capacity reaches 5,000,000 ; user capacity reaches 100,000 ; face templates capacity: 100,000 ;
card capacity: 100,000
- SYSTEM
- Operation System
Android 9.0
- CPU
64bit Eight Core Customized Computer Vision CPU
- Storage
2GB LPDDR3 16GB eMMC
- SDK
AndroidL CDP, PUSH SDK
- BASIC
- Communication
TCP / IP, Wi-Fi, Bluetooth, USB
- Display
8 inch TFT LCD Color Screen
- Screen Type
Capacitive Touch Screen
- Resolution
800*1280
- Camera
2MP Binocular Camera
- QR Code (optional)
Dynamic QR codes on the ZKBioSecurity mobile application QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects
- Card Type
Dual-frequency (125kHz and 13.56MHz)
card module (standard)
Multi-tech Card Module (optional)
ISO14443A/B & ISO15693 & HID Prox
- INTERFACE
- USB
1 USB 3.0, 1 USB 2.0, 1 Micro USB
- Power Adapter
12V 3A
- Ethernet
RJ45, 1000M
- RS232
1
- RS485
1
- Wiegand
1 input, 1 output
- Auxiliary input
1
- Sensor
1
- Exit Button
1
- Lock
1
- Alarm
1
- Bell
1
- Power out
1, 12V
- Reset Button
1
- PERFORMANCE
- Protective level
IP66 without Fingerprint / QR Code Reader;
IP65 with Fingerprint / QR Code Reader;
IK04
- Card Reading Distance
1cm – 5cm
- Face Recognition
Face-camera distance
- Range
0.3 m to 3.0 m; (Human height: 0.9 m to 2.4 m)
- Face Recognition Time
< 1s
- Face Verification Accuracy
≥99%
- Fingerprint Sensor Type (optional)
Optical
- Fingerprint Comparison Time
≤0.5s
- Facial Recognition Method
1:1, 1:N
- Fingerprint Verification Method
1:1, 1:N
- Facial Recognition Algorithm
ZKFace 5.6.2
- Fingerprint Recognition Algorithm
ZKFinger 10.0
- FIRMWARE
- User Capacity
100,000
- Face Templates Capacity
100,000
- Fingerprint Capacity (optional)
30,000
- Card Capacity
100,000
- Record Capacity
5,000,000
- Standard Firmware Functions
Push, Schedule Bell, Automatic Status Switch, Record Query, Access Levels, Groups, Holidays, DST, Duress Mode (Password & Fingerprint), Anti-Passback, Customization of Wallpaper & Screen Saver, Tamper Alarm
- Language
English, Korean, Latin American, Indonesian, Vietnamese, traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian and Thai
- Software
ZKBio Time, ZKBioSecurity, ZKBioCV Security
- BODY TEMPERATURE DETECTION(OPTIONAL)
- Preventative Measures
Mask detection / Body temperature detection
- Temperature Measurement Distance
50cm to 120cm (1.64ft to 3.94ft)
- Temperature Measurement Accuracy
±0.3°C (±0.56°F)
- Temperature Measurement Range
20°C to 50°C (68°F to 122°F)
- GENERAL
- Power Supply
12V 3A; PoE (IEEE802.3af/at)
- Dimensions
279.5mm*141mm*29mm (11in*5.55in*1.14in)
- Operating Temperature
-10℃ to 50℃ (14°F to 122°F)
- Operating Humidity
<90% RH
- Operating Environment
Outdoor
- Gross Weight
1.2 kg
- Installation Method
Wall-mounted or Turnstile top-mount bracket
- Certifications
CE, FCC, ISO9001, ISO14001, IP66, IK04
